18_49_30_943_de82tn_00
Continuous power handling
Voice coil diameter
Diaphragm material
Throat diameter




Features

  • 220 W continuous program power capacity
  • 1.4' horn throat diameter
  • 75 mm (3 in) aluminium voice coil
  • Titanium diaphragm
  • 500 - 18000 Hz response
  • 106.5 dB sensitivity
  • Shorting copper cap for extended HF response

Specifications1

  • Throat Diameter36 mm (1.4 in)
  • Nominal Impedance8 Ω
  • Minimum Impedance8.5 Ω
  • Nominal Power Handling2110 W
  • Continuous power handling3220 W
  • Sensitivity (1W/1m)4106.5 dB
  • Frequency Range500.0 - 18.0 kHz
  • Recommended Crossover51.0 kHz
  • Voice Coil Diameter75 mm (3.0 in)
  • Winding MaterialAluminium
  • Inductance0.14 mH
  • Diaphragm MaterialTitanium
  • Flux Density1.8 T
  • Magnet MaterialFerrite

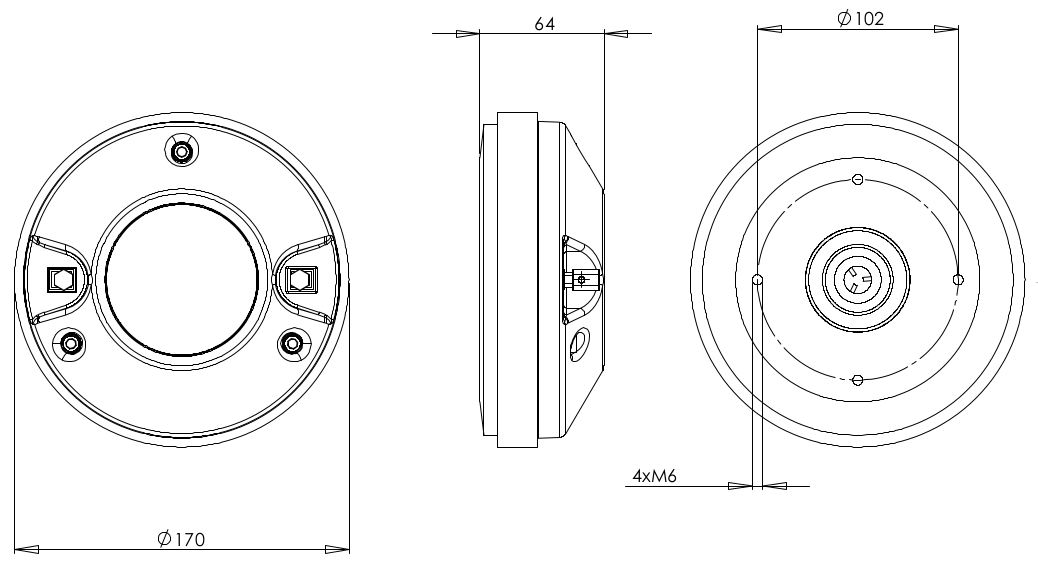

Mounting and Shipping Info

  • Four M6 holes 90° on 102 mm (4 in) diameter
  • Overall Diameter170 mm (6.7 in)
  • Depth64 mm (2.5 in)
  • Net Weight4.44 kg (9.79 lb)
  • Shipping Units1
  • Shipping Weight4.56 kg (10.05 lb)
  • Shipping Box190x190x80 mm (7.48x7.48x3.15 in)
  • Other Details4x M6 Mounting Studs with bolts and washers included
  • Driver mounted on B&C ME 90 horn.
  • 2 hour test made with continuous pink noise signal within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated minimum impedance.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
  • 12 dB/oct. or higher slope high-pass filter.
