Continuous power handling
Voice coil diameter
Magnet material
Over the last several years, B&C has pushed neodymium magnet woofer performance to the next level. The deep, 3" (76mm) diameter voice coil utilized in the 10NW76 provides increased power handling and more overall output. A proven B&C suspension system combines a triple roll surround and single spider for superior, reliable Xmax and balanced output. An aluminium demodulation ring keeps distortion low, while the deeper, high power voice coil is cooled using a ventilated voice coil gap. Extreme performance and reliability, excellent value.
Features
- 800 W continuous program power capacity
- 76 mm (3 in) copper clad aluminum wire voice coil
- 65 - 3500 Hz response
- 96.5 dB sensitivity
- Neodymium magnet allows a very light yet powerful motor assembly
- Aluminium demodulating ring for very low distortion
- Ventilated voice coil gap for reduced power
Specifications
- Nominal Diameter250 mm (10.0 in)
- Nominal Impedance8 Ω
- Minimum Impedance6.6 Ω
- Nominal Power Handling1400 W
- Continuous power handling2800 W
- Sensitivity (1W/1m)396.5 dB
- Frequency Range65 - 3500 Hz
- Voice Coil Diameter76 mm (3.0 in)
- Winding MaterialCCAW
- Former MaterialGlass Fibre
- Winding Depth18.5 mm (0.73 in)
- Magnetic Gap Depth10.0 mm (0.39 in)
- Flux Density1.35 T
Design
- Surround ShapeTriple Roll
- Cone ShapeCurvilinear
- Magnet MaterialNeodymium Ring
- SpiderSingle
- Pole DesignT-Pole
- Woofer Cone TreatmentWP Waterproof Front Side
- Recommended Enclosure26.0 dm3 (0.92 ft3)
- Recommended Tuning65 Hz
Parameters4
- Resonance Frequency67 Hz
- Re5.5 Ω
- Qes0.27
- Qms7.8
- Qts0.26
- Vas17.6 dm3 (0.62 ft3)
- Sd320.0 cm2 (49.6 in2)
- η₀1.85 %
- Xmax± 6.8 mm
- Xvar± 7.0 mm
- Mms47.0 g
- Bl20.0 Txm
- Le0.38 mH
- EBP248 Hz

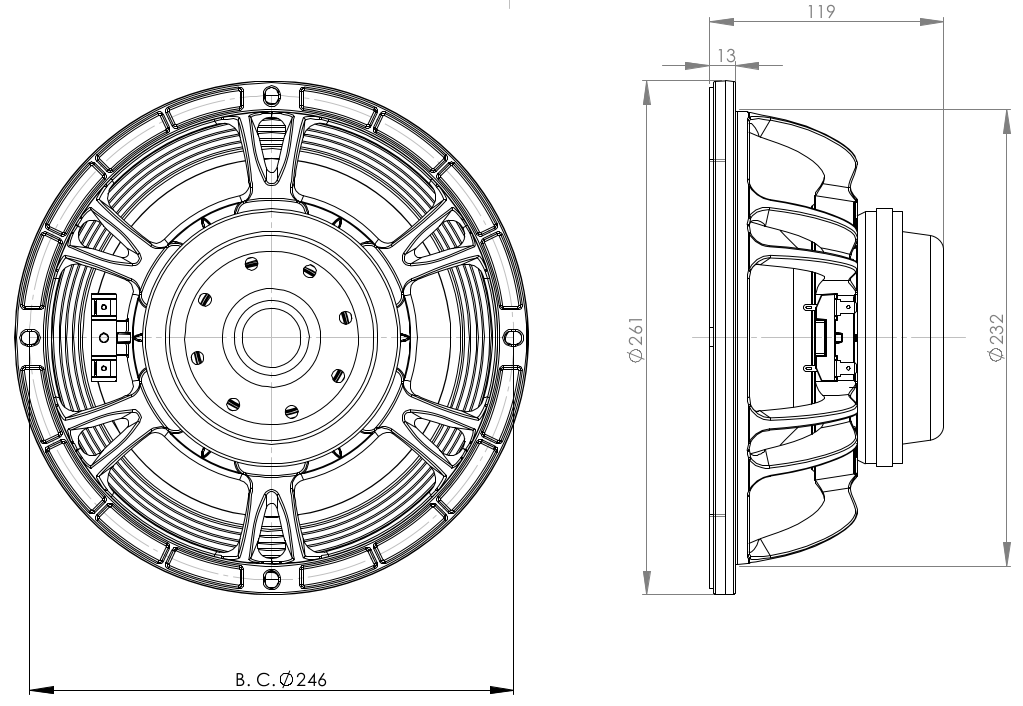

Mounting and Shipping Info
- Overall Diameter261 mm (10.28 in)
- Bolt Circle Diameter246 mm (9.69 in)
- Baffle Cutout Diameter233.0 mm (9.17 in)
- Depth119 mm (4.69 in)
- Flange and Gasket Thickness13 mm (0.51 in)
- Air Volume Occupied by Driver1.5 dm3 (0.05 ft3)
- Net Weight3.8 kg (8.38 lb)
- Shipping Units1
- Shipping Weight4.4 kg (9.7 lb)
- Shipping Box295x314x175 mm (11.61x12.36x6.89 in)
Service Kit
- Recone kitRCK10NW768
Discover more
- 2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minumum impedance. Loudspeaker in free air.
- Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
- Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
- Thiele-Small parameters are measured after a high level 20 Hz sine wave preconditioning test.
