DE360

DE360

HF Drivers 1.0 inches

compare
Drawing
Datasheet
back
12_13_22_811_11_39_27_954_de360_etc
Continuous power handling
Voice coil diameter
Diaphragm material
Throat diameter
The DE360 ring radiator high frequency driver features a ketone polymer diaphragm with a neodymium magnet motor. Extensive FEA modelling and physical testing over the last several years has culminated in these 1.5 inch (38mm) coil, ring radiator drivers with outstanding sensitivity, high frequency extension, and compactness. A practical recommended crossover point of 1.8kHz and sensitivity of 110dB allow the DE360 to be suitable for a wide range of applications, including compact two way point source boxes and line arrays.




Features

  • 70 W continuous program power capacity
  • 110 dB sensitivity
  • 1200 - 20000 Hz response
  • 1" horn throat diameter
  • 38 mm (1.5 in) aluminum voice coil
  • Annular HT polymer diaphragm

Specifications1

  • Throat Diameter25 mm (1.0 in)
  • Nominal Impedance16 Ω
  • Minimum Impedance13.8 Ω
  • Nominal Power Handling235 W
  • Continuous power handling370 W
  • Sensitivity (1W/1m)4110.0 dB
  • Frequency Range1.2 - 20.0 kHz
  • Recommended Crossover51.8 kHz
  • Voice Coil Diameter38 mm (1.5 in)
  • Winding MaterialAluminium
  • Inductance0.23 mH
  • Diaphragm MaterialHT Polymer
  • Flux Density2.0 T
  • Magnet MaterialNeodymium Ring

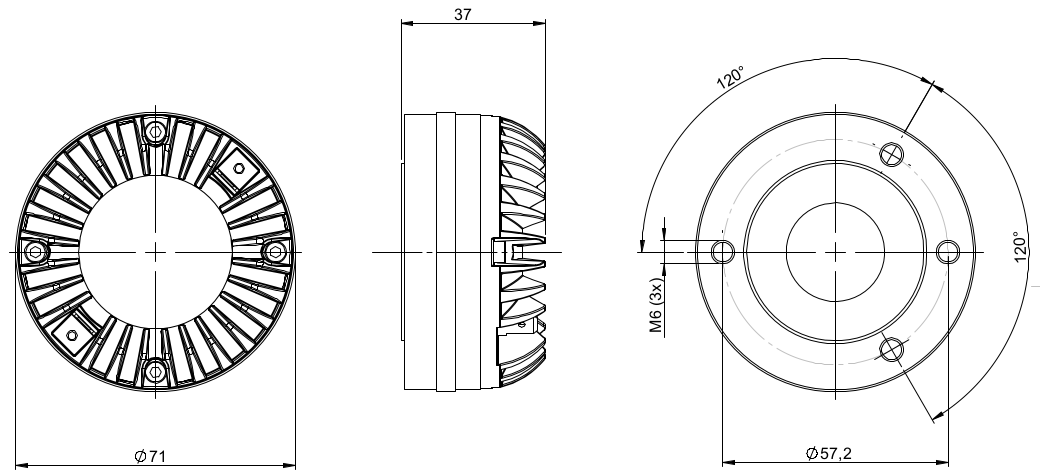

Mounting and Shipping Info

  • Two M6 holes 180° on 57 mm (2.2 in) diameter
  • Three M6 holes 120° on 57 mm (2.2 in) diameter
  • Overall Diameter71 mm (2.8 in)
  • Depth37 mm (1.46 in)
  • Net Weight0.5 kg (1.1 lb)
  • Shipping Units1
  • Shipping Weight0.53 kg (1.16 lb)
  • Shipping Box105x105x65 mm (4.13x4.13x2.56 in)
  • Other Details3x M6 Mounting Studs with bolts and washers included

Service Kit

  • Driver mounted on B&C ME 45 horn.
  • 2 hour test made with continuous pink noise signal within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated minimum impedance.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 4 V for 16 ohms Nominal Impedance.
  • 12 dB/oct. or higher slope high-pass filter.
