16_36_49_249_de250tn_00
Continuous power handling
Voice coil diameter
Diaphragm material
Throat diameter




Features

  • 120 W continuous program power capacity
  • 1" horn throat diameter
  • 44 mm (1.7 in) aluminium voice coil
  • Titanium diaphragm
  • 1000 - 18000 Hz response
  • 106 dB sensitivity

Specifications1

  • Throat Diameter25 mm (1.0 in)
  • Nominal Impedance8 Ω
  • Minimum Impedance7.4 Ω
  • Nominal Power Handling260 W
  • Continuous power handling3120 W
  • Sensitivity (1W/1m)4106.0 dB
  • Frequency Range1.0 - 18.0 kHz
  • Recommended Crossover51.5 kHz
  • Voice Coil Diameter44 mm (1.7 in)
  • Winding MaterialAluminium
  • Inductance0.11 mH
  • Diaphragm MaterialTitanium
  • Flux Density1.85 T
  • Magnet MaterialFerrite

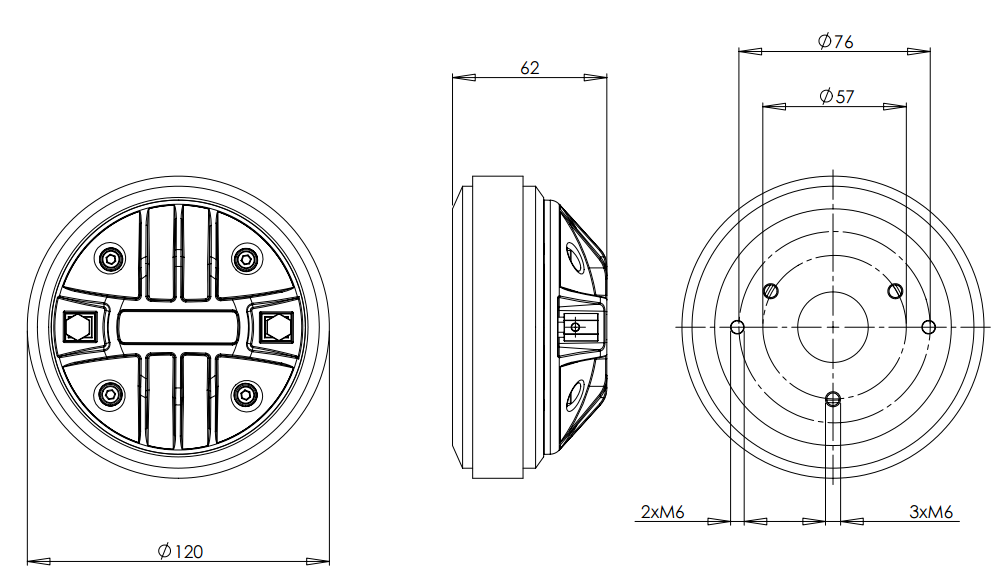

Mounting and Shipping Info

  • Two M6 holes 180° on 76 mm (3 in) diameter
  • Three M6 holes 120° on 57 mm (2.2 in) diameter
  • Overall Diameter120 mm (4.7 in)
  • Depth62 mm (2.4 in)
  • Net Weight2.15 kg (4.74 lb)
  • Shipping Units1
  • Shipping Weight2.21 kg (4.87 lb)
  • Shipping Box120x120x65 mm (4.72x4.72x2.56 in)
  • Other Details3x M6 Mounting Studs with bolts and washers included

Service Kit

  • Driver mounted on B&C ME 45 horn.
  • 2 hour test made with continuous pink noise signal within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated minimum impedance.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
  • 12 dB/oct. or higher slope high-pass filter.
