Features
- 140 W continuous program power capacity
- 1" horn throat diameter
- 51 mm (2 in) aluminium voice coil
- HT Polymer diaphragm
- 1000 - 17000 Hz response
- 108 dB sensitivity
Specifications1
- Throat Diameter25 mm (1.0 in)
- Nominal Impedance8 Ω
- Minimum Impedance8.3 Ω
- Nominal Power Handling270 W
- Continuous Power Handling3140 W
- Sensitivity (1W/1m)4108.0 dB
- Frequency Range1.0 - 17.0 kHz
- Recommended Crossover51.2 kHz
- Voice Coil Diameter51 mm (2.0 in)
- Winding MaterialAluminium
- Inductance0.14 mH
- Diaphragm MaterialHT Polymer
- Flux Density2.0 T
- Magnet MaterialNeodymium Ring

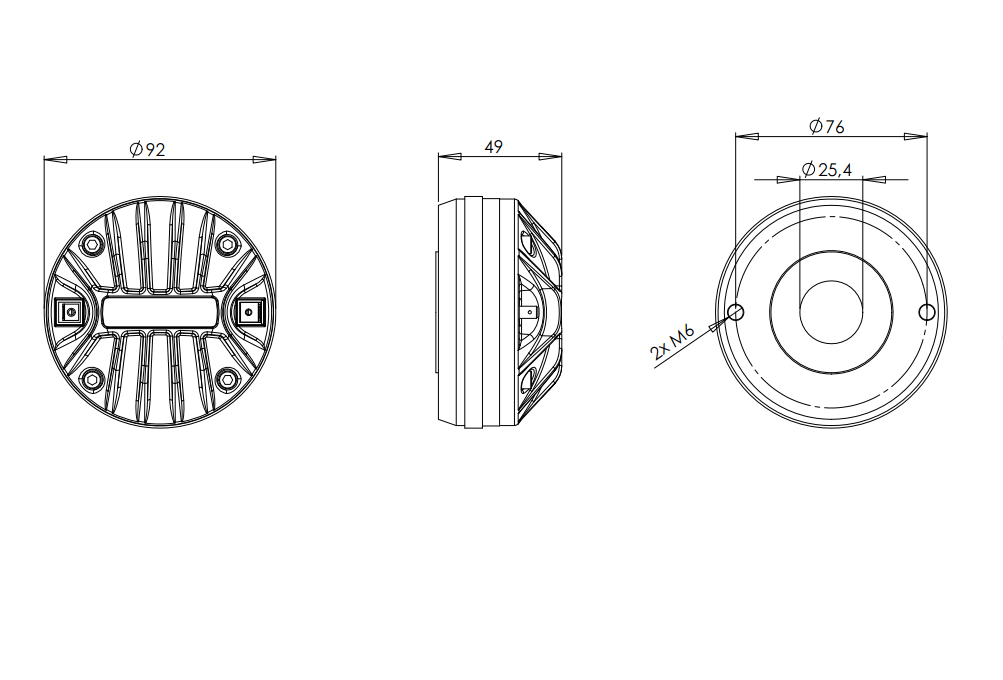

Mounting and Shipping Info
- Two M6 holes 180° on 76 mm (3 in) diameter
- Overall Diameter92 mm (3.62 in)
- Depth49 mm (1.93 in)
- Net Weight1.25 kg (2.76 lb)
- Shipping Units1
- Shipping Weight1.28 kg (2.81 lb)
- Shipping Box105x105x65 mm (4.13x4.13x2.56 in)
- Other Details2x M6 Mounting Studs with bolts and washers included
- Driver mounted on B&C ME 45 horn.
- 2 hour test made with continuous pink noise signal within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated minimum impedance.
- Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
- Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
- 12 dB/oct. or higher slope high-pass filter.
