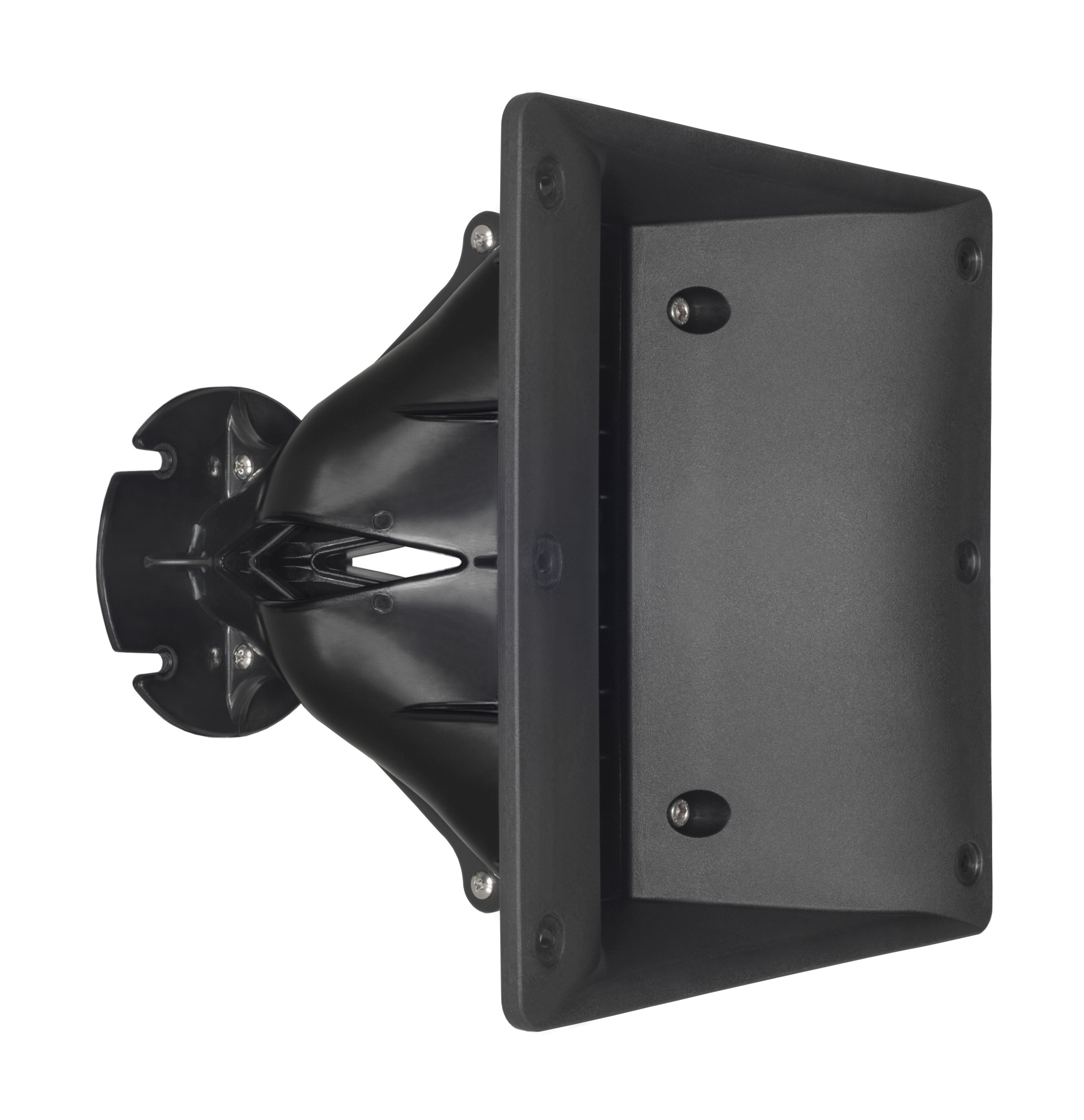

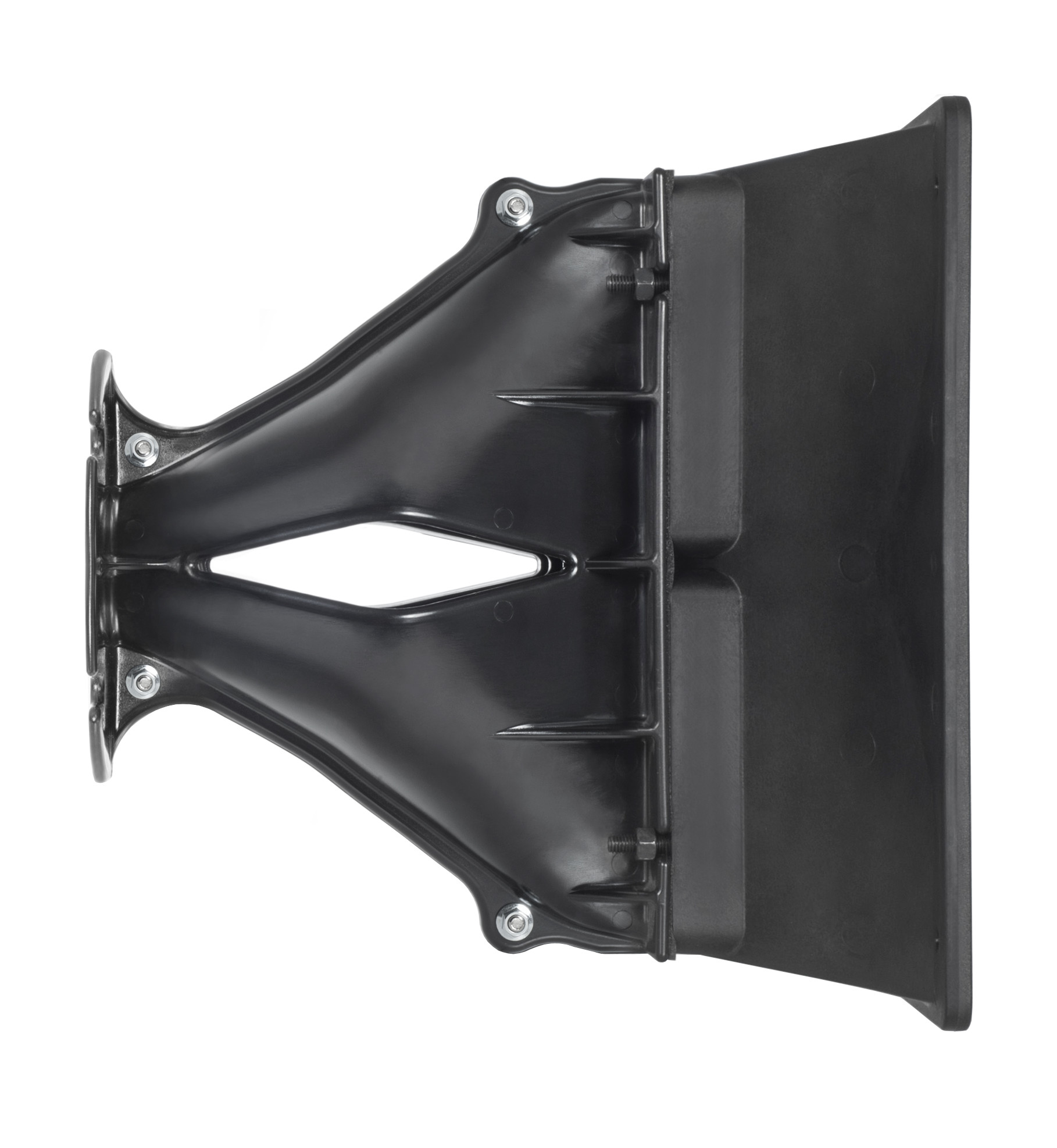

HF146
1.4 inch exit
NEW
Features
- Horn Flare specifically optimized for ME146
- 100° horizontal coverage
- Vertical coverage depends on configuration
- Very good loading and directivity control down to 700 Hz
Specifications
Frequency response and Impedance measured with

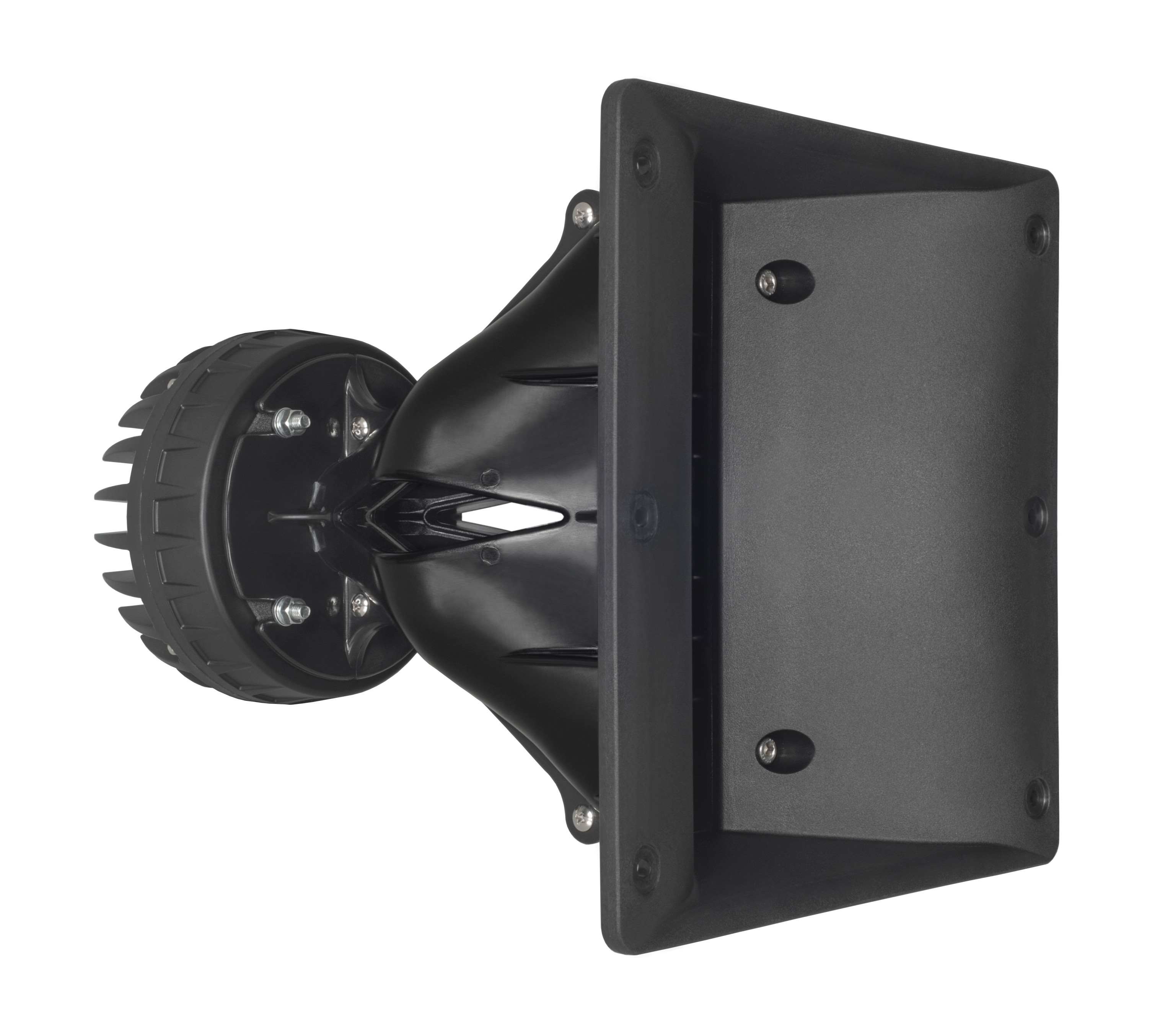

DCX354-8+ME146+HF146
Nominal Coverage Horizontal
100 °
Cutoff Frequency
0.7 kHz
Material
PC/ABS/GF blend
Design
Constant Directivity
Dimensions
260x200x75 mm
Mounting and Shipping Info
Net Weight
0.45 kg (0.99 lb)
Shipping Units
1 pcs
Shipping Weight
0.72 kg (1.59 lb)
Shipping Box
