Limited Distribution

10MD555

LF Drivers 10.0 inches

back
16_09_50_454_10md555_0016_09_55_458_10md555_0216_10_10_472_10md555_01
Continuous power handling
Voice coil diameter
Magnet material
Limited Distribution Product
USA only - Contact
Thunderball Marketing for more information.




Features

  • 700 W continuous program power capacity
  • 76 mm (3 in) aluminium voice coil
  • 80 - 4000 Hz response
  • 100 dB sensitivity

Specifications

  • Nominal Diameter250 mm (10.0 in)
  • Nominal Impedance8 Ω
  • Minimum Impedance7.2 Ω
  • Nominal Power Handling1350 W
  • Continuous power handling2700 W
  • Sensitivity (1W/1m)3100.0 dB
  • Frequency Range80 - 4000 Hz
  • Voice Coil Diameter76 mm (3.0 in)
  • Winding MaterialAluminium
  • Former MaterialGlass Fibre
  • Winding Depth11.0 mm (0.43 in)
  • Magnetic Gap Depth8.0 mm (0.31 in)
  • Flux Density1.45 T

Design

  • Surround ShapeDouble Roll
  • Cone ShapeExponential
  • Magnet MaterialFerrite
  • SpiderSingle
  • Pole DesignT-Pole
  • Woofer Cone TreatmentNone

Parameters4

  • Resonance Frequency76 Hz
  • Re5.8 Ω
  • Qes0.22
  • Qms4.8
  • Qts0.21
  • Vas20.0 dm3 (0.71 ft3)
  • Sd320.0 cm2 (49.1 in2)
  • η₀3.9 %
  • Xmax± 1.5 mm
  • Xvar± 4.5 mm
  • Mms31.0 g
  • Bl19.6 Txm
  • Le1.2 mH
  • EBP345 Hz

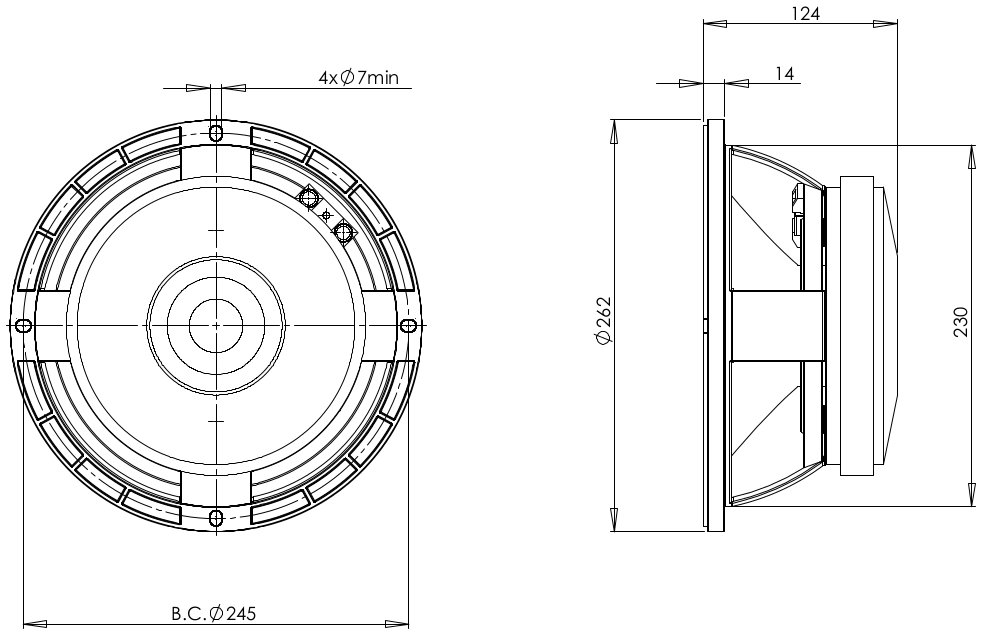

Mounting and Shipping Info

  • Overall Diameter262 mm (10.3 in)
  • Bolt Circle Diameter245 mm (9.6 in)
  • Baffle Cutout Diameter230.0 mm (8.8 in)
  • Depth124 mm (4.9 in)
  • Flange and Gasket Thickness14 mm (0.55 in)
  • Air Volume Occupied by Driver2.6 dm3 (0.09 ft3)
  • Net Weight7.25 kg (15.98 lb)
  • Shipping Units1
  • Shipping Weight7.85 kg (17.31 lb)
  • Shipping Box295x314x175 mm (11.61x12.36x6.89 in)

Service Kit

  • 2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minumum impedance. Loudspeaker in free air.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
  • Thiele-Small parameters are measured after a high level 20 Hz sine wave preconditioning test.
