    10CXN64

    10 inches

    Continuing our never-ending quest for higher output, we now offer our popular single neodymium magnet coaxials with larger voice coils for increased power handling. A significant increase in magnet mass also improves sensitivity and cone control, while integrating our latest compression driver technologies improves sound quality and durability in the HF as well. For high output applications where fidelity at maximum SPL is the primary concern, consider the 10CXN64 with 2.5” LF & HF voice coils. Power handling has increased to 500W, while also improving nearly every other parameter (including Xvar) relative to our established 10" coax models.

    Features


    500 W continuous program power capacity
    70° nominal coverage
    70 - 18000 Hz response
    97 dB sensitivity
    Single Neodymium magnet assembly
    Aluminium demodulating ring allows a very low distortion figure

    General

    Nominal Diameter

    250 mm (10 in)

    Nominal Impedance

    8 Ω

    Frequency Range

    70 Hz - 18000 Hz

    Dispersion Angle

    70 °

    Specifications LF unit

    Sensitivity

    97 dB

    Nominal Power Handling

    250 W

    Continuous Power Handling

    500 W

    Voice Coil Diameter

    64 mm (2.5 in)

    Winding Material

    Copper

    Flux Density

    1.1 T

    Nominal Diameter

    250 mm (10 in)

    Nominal Impedance

    8 Ω

    Minimum Impedance

    6.7 Ω

    Former Material

    Kapton

    Winding Depth

    15 mm (0.59 in)

    Magnetic Gap Depth

    9 mm (0.35 in)

    Woofer Cone Treatment

    WP Waterproof Front Side

    Specifications HF unit

    Sensitivity

    103 dB

    Nominal Power Handling

    80 W

    Continuous Power Handling

    160 W

    Voice Coil Diameter

    65 mm (2.5 in)

    Winding Material

    CCAW

    Flux Density

    1.75 T

    Nominal Diameter

    250 mm (10 in)

    Nominal Impedance

    8 Ω

    Minimum Impedance

    7 Ω

    Recommended Crossover

    1.2 kHz

    Inductance

    0.15 mH

    Diaphragm Material

    Titanium

    Design

    Magnet Material

    Neodymium Ring

    Woofer Cone Treatment

    WP Waterproof Front Side

    Parameters

    Fs

    68 Hz

    Re

    5.6 Ω

    Qes

    0.33

    Qms

    5.6

    Qts

    0.31

    Vas

    23 dm³ (0.81 ft³)

    Sd

    320 cm² (49.6 sq²)

    η0

    2.2 %

    Xvar

    5 mm

    Mms

    33.5 g

    Bl

    15.8 Tm

    Le

    1.1 mH

    EBP

    206 Hz

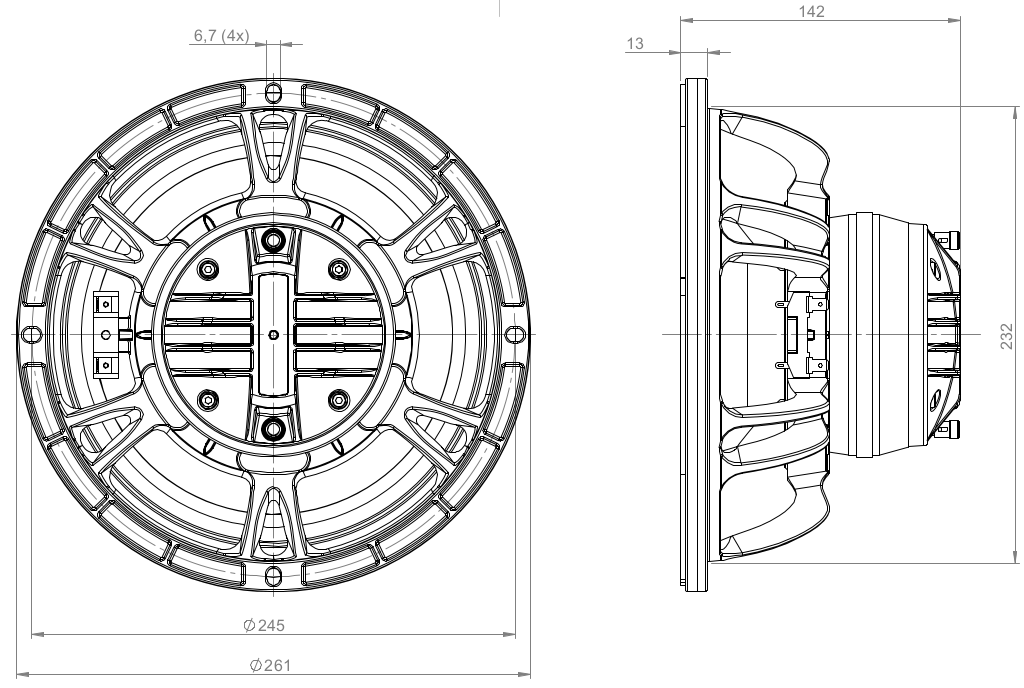

    Mounting and Shipping Info

    Overall Diameter

    261 mm (10.28 in)

    Bolt Circle Diameter

    245 mm (9.65 in)

    Baffle Cutout Diameter

    233 mm (9.17 in)

    Depth

    142 mm (5.59 in)

    Flange and Gasket Thickness

    13 mm (0.51 in)

    Net Weight

    3.95 kg (8.71 lb)

    Shipping Units

    1 pcs

    Shipping Weight

    4.85 kg (10.69 lb)

    Shipping Box

    360x360x200 mm (14.17x14.17x7.87 in)

    Service Kit

    hf Replacement Diaphragm
    MMD620TN8M
    lf Recone Kit
    RCK10CXN648
    • Cone

    • Gasket

    • Centering Shims

    Crossover

    FB10CX64
