    10FCX64

    10 inches

    Features


    500 W continuous program power capacity
    70° nominal coverage
    65 - 18000 Hz response
    95 dB sensitivity
    33 mm (1.3”) HF unit exit diameter

    General

    Nominal Diameter

    250 mm (10 in)

    Nominal Impedance

    8 Ω

    Frequency Range

    65 Hz - 18000 Hz

    Dispersion Angle

    70 °

    Specifications LF unit

    Sensitivity

    95 dB

    Nominal Power Handling

    250 W

    Continuous Power Handling

    500 W

    Voice Coil Diameter

    64 mm (2.5 in)

    Winding Material

    Copper

    Flux Density

    0.96 T

    Nominal Diameter

    250 mm (10 in)

    Nominal Impedance

    8 Ω

    Minimum Impedance

    6.4 Ω

    Former Material

    Kapton

    Winding Depth

    13 mm (0.51 in)

    Magnetic Gap Depth

    8 mm (0.31 in)

    Woofer Cone Treatment

    WP Waterproof Front Side

    Specifications HF unit

    Sensitivity

    104 dB

    Nominal Power Handling

    80 W

    Continuous Power Handling

    160 W

    Voice Coil Diameter

    65 mm (2.5 in)

    Winding Material

    Aluminium

    Flux Density

    1.6 T

    Nominal Diameter

    250 mm (10 in)

    Nominal Impedance

    8 Ω

    Minimum Impedance

    7 Ω

    Recommended Crossover

    1.2 kHz

    Inductance

    0.15 mH

    Diaphragm Material

    Titanium

    Design

    Magnet Material

    Ferrite -

    Woofer Cone Treatment

    WP Waterproof Front Side

    Parameters

    Fs

    63 Hz

    Re

    5.5 Ω

    Qes

    0.44

    Qms

    7.9

    Qts

    0.42

    Vas

    25 dm³ (0.89 ft³)

    Sd

    320 cm² (49.1 sq²)

    η0

    1.4 %

    Xvar

    6 mm

    Mms

    37 g

    Bl

    13.4 Tm

    Le

    1.2 mH

    EBP

    143 Hz

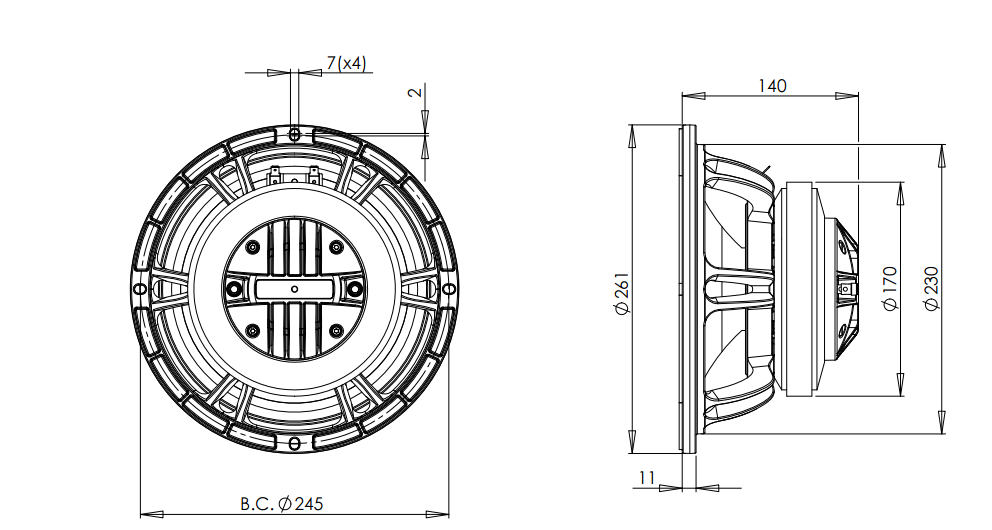

    Mounting and Shipping Info

    Overall Diameter

    261 mm (10.3 in)

    Bolt Circle Diameter

    245 mm (9.6 in)

    Baffle Cutout Diameter

    230 mm (8.8 in)

    Depth

    140 mm (5.51 in)

    Flange and Gasket Thickness

    11 mm (0.43 in)

    Net Weight

    5.6 kg (12.35 lb)

    Shipping Units

    1 pcs

    Shipping Weight

    6.5 kg (14.33 lb)

    Shipping Box

    360x360x200 mm (14.17x14.17x7.87 in)

    Service Kit

    hf Replacement Diaphragm
    MMD620TN8M
    lf Recone Kit
    RCK10FCX648
    • Cone

    • Gasket

    • Centering Shims

    Crossover

    FB10CX64
