    12CXN76

    12 inches

    Features


    700 W continuous program power capacity
    80° nominal coverage
    45 - 18000 Hz response
    99 dB sensitivity
    Single Neodymium magnet assembly
    Aluminium demodulating ring for very low distortion

    General

    Nominal Diameter

    320 mm (12 in)

    Nominal Impedance

    8 Ω

    Frequency Range

    45 Hz - 18000 Hz

    Dispersion Angle

    80 °

    Specifications LF unit

    Sensitivity

    99 dB

    Nominal Power Handling

    350 W

    Continuous Power Handling

    700 W

    Voice Coil Diameter

    76 mm (3 in)

    Winding Material

    Copper

    Flux Density

    1.15 T

    Nominal Diameter

    320 mm (12 in)

    Nominal Impedance

    8 Ω

    Minimum Impedance

    6.5 Ω

    Former Material

    Glass Fibre

    Winding Depth

    16.2 mm (0.64 in)

    Magnetic Gap Depth

    8 mm (0.31 in)

    Woofer Cone Treatment

    WP Waterproof Front Side

    Specifications HF unit

    Sensitivity

    105 dB

    Nominal Power Handling

    80 W

    Continuous Power Handling

    160 W

    Voice Coil Diameter

    75 mm (3 in)

    Winding Material

    Aluminium

    Flux Density

    1.9 T

    Nominal Diameter

    320 mm (12 in)

    Nominal Impedance

    8 Ω

    Minimum Impedance

    8 Ω

    Recommended Crossover

    1.2 kHz

    Inductance

    0.14 mH

    Diaphragm Material

    Polyester/Titanium

    Design

    Magnet Material

    Neodymium Ring

    Woofer Cone Treatment

    WP Waterproof Front Side

    Parameters

    Fs

    42 Hz

    Re

    5 Ω

    Qes

    0.2

    Qms

    8

    Qts

    0.19

    Vas

    120 dm³ (4.2 ft³)

    Sd

    522 cm² (80.9 sq²)

    η0

    4.1 %

    Xvar

    6 mm

    Mms

    47 g

    Bl

    17.6 Tm

    Le

    0.8 mH

    EBP

    210 Hz

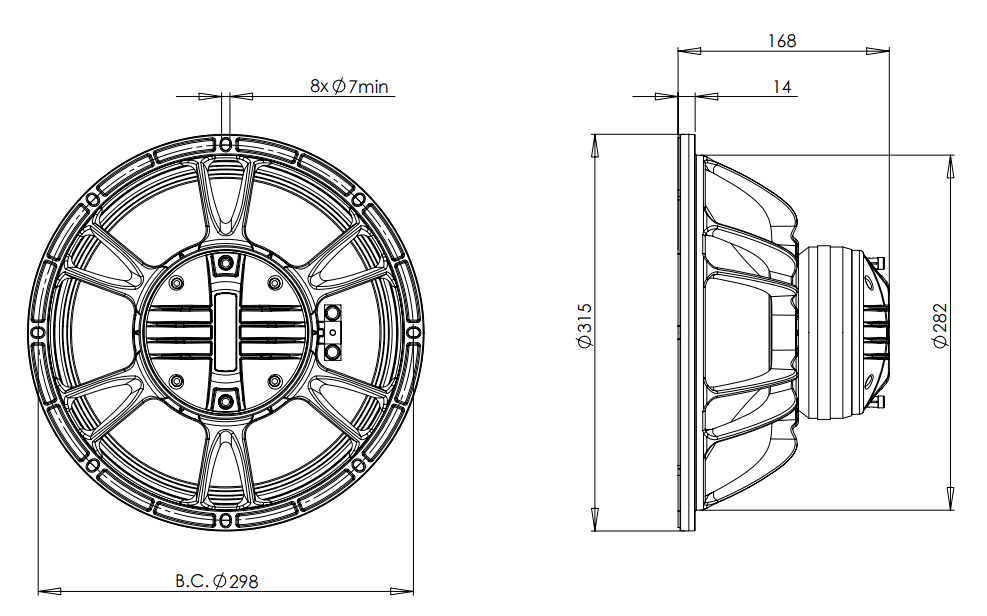

    Mounting and Shipping Info

    Overall Diameter

    315 mm (12.4 in)

    Bolt Circle Diameter

    298 mm (11.7 in)

    Baffle Cutout Diameter

    282 mm (11.1 in)

    Depth

    170 mm (6.7 in)

    Flange and Gasket Thickness

    14 mm (0.55 in)

    Net Weight

    5.1 kg (11.24 lb)

    Shipping Units

    1 pcs

    Shipping Weight

    6.4 kg (14.11 lb)

    Shipping Box

    425x425x224 mm (16.73x16.73x8.82 in)

    Service Kit

    hf Replacement Diaphragm
    MMD9028M
    lf Recone Kit
    RCK12CXN768
    • Cone

    • Gasket

    • Centering Shims
