    12CXN88

    12 inches

    NEW
    Continuing our never-ending quest for higher output, we now offer our popular single neodymium magnet coaxials with larger voice coils for increased power handling. A significant increase in magnet mass also improves sensitivity and cone control, while integrating our latest compression driver technologies improves sound quality and durability in the HF as well. For high output applications where fidelity at maximum SPL is the primary concern, consider the 12CXN88, with 3.5” LF and 3” HF voice coils. Power handling has increased to 1000W, while also improving nearly every other parameter (including Xvar) relative to our established 3” coil CXN76 series.

    Features


    1000 W continuous program power capacity
    80° nominal coverage
    50 - 18000 Hz response
    100 dB sensitivity
    Single Neodymium magnet assembly
    Aluminium demodulating ring allows a very low distortion figure
    Double silicone spider with optimized compliance

    General

    Nominal Diameter

    320 mm (12 in)

    Nominal Impedance

    8 Ω

    Frequency Range

    50 - 18000 Hz

    Dispersion Angle

    80 °

    Specifications LF unit

    Sensitivity

    100 dB

    Nominal Power Handling

    500 W

    Continuous Power Handling

    1000 W

    Voice Coil Diameter

    88 mm (3.5 in)

    Winding Material

    Aluminium

    Flux Density

    1.05 T

    Nominal Diameter

    320 mm (12 in)

    Nominal Impedance

    8 Ω

    Minimum Impedance

    6.6 Ω

    Former Material

    Glass Fibre

    Winding Depth

    21.5 mm (0.85 in)

    Magnetic Gap Depth

    11 mm (0.43 in)

    Woofer Cone Treatment

    WP Waterproof Front Side

    Specifications HF unit

    Sensitivity

    106 dB

    Nominal Power Handling

    80 W

    Continuous Power Handling

    160 W

    Voice Coil Diameter

    75 mm (3 in)

    Winding Material

    Aluminium

    Flux Density

    1.75 T

    Nominal Diameter

    320 mm (12 in)

    Nominal Impedance

    8 Ω

    Minimum Impedance

    8.5 Ω

    Recommended Crossover

    1.2 kHz

    Inductance

    0.14 mH

    Diaphragm Material

    Titanium

    Magnet Material

    Neodymium Ring

    Design

    Magnet Material

    Neodymium Ring

    Woofer Cone Treatment

    WP Waterproof Front Side

    Parameters

    Fs

    50 Hz

    Re

    5 Ω

    Qes

    0.23

    Qms

    8.3

    Qts

    0.22

    Vas

    59 dm³ (2.08 ft³)

    Sd

    522 cm² (80.91 sq²)

    η0

    3.6 %

    Xvar

    10.5 mm

    Mms

    60 g

    Bl

    20.9 Tm

    Le

    1.05 mH

    EBP

    217 Hz

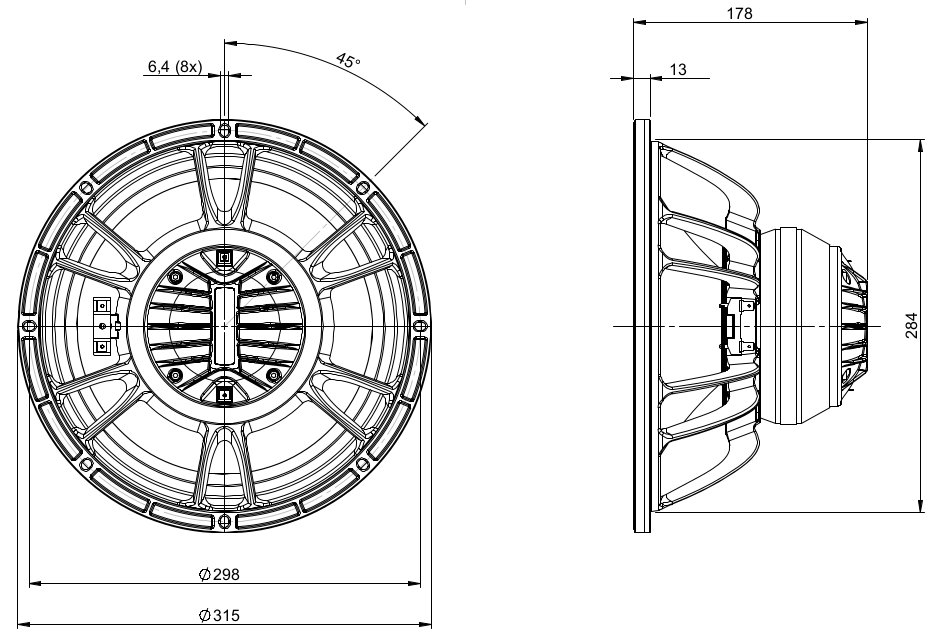

    Mounting and Shipping Info

    Overall Diameter

    315 mm (12.4 in)

    Bolt Circle Diameter

    298 mm (11.7 in)

    Baffle Cutout Diameter

    284 mm (11.18 in)

    Depth

    178 mm (7.01 in)

    Flange and Gasket Thickness

    13 mm (0.51 in)

    Net Weight

    6.85 kg (15.1 lb)

    Shipping Units

    1 pcs

    Shipping Weight

    8.15 kg (17.97 lb)

    Shipping Box

    425x425x224 mm (16.73x16.73x8.82 in)

    Service Kit

    hf Replacement Diaphragm
    MMD3DTN8M
    lf Recone Kit
    RCK12CXN888
    • Cone

    • Basket

    • Centering Shims
