    12FHX76

    12 inches

    Features


    700 W continuous program power capacity
    60°x40° nominal coverage
    45 - 18000 Hz response
    98 dB sensitivity
    Modified exponential horn flare for improved acoustic loading and controlled coverage
    33 mm (1.3”) HF unit exit diameter
    Single Ferrite magnet assembly
    Aluminium demodulating ring allows a very low distortion figure

    General

    Nominal Diameter

    320 mm (12 in)

    Nominal Impedance

    8 Ω

    Frequency Range

    45 Hz - 18000 Hz

    Dispersion Angle

    60 °

    Specifications LF unit

    Sensitivity

    98 dB

    Nominal Power Handling

    350 W

    Continuous Power Handling

    700 W

    Voice Coil Diameter

    76 mm (3 in)

    Winding Material

    Copper

    Flux Density

    1 T

    Nominal Diameter

    320 mm (12 in)

    Nominal Impedance

    8 Ω

    Minimum Impedance

    6 Ω

    Former Material

    Glass Fibre

    Winding Depth

    16.5 mm (0.65 in)

    Magnetic Gap Depth

    8 mm (0.31 in)

    Woofer Cone Treatment

    WP Waterproof Front Side

    Specifications HF unit

    Sensitivity

    106 dB

    Nominal Power Handling

    80 W

    Continuous Power Handling

    160 W

    Voice Coil Diameter

    75 mm (3 in)

    Winding Material

    Aluminium

    Flux Density

    1.6 T

    Nominal Diameter

    320 mm (12 in)

    Nominal Impedance

    8 Ω

    Minimum Impedance

    7.8 Ω

    Recommended Crossover

    1.2 kHz

    Inductance

    0.14 mH

    Diaphragm Material

    Titanium

    Design

    Magnet Material

    Ferrite

    Woofer Cone Treatment

    WP Waterproof Front Side

    Parameters

    Fs

    48 Hz

    Re

    5.2 Ω

    Qes

    0.36

    Qms

    5.4

    Qts

    0.33

    Vas

    88 dm³ (3.1 ft³)

    Sd

    522 cm² (80.9 sq²)

    η0

    2.7 %

    Xvar

    4 mm

    Mms

    47 g

    Bl

    14.4 Tm

    Le

    1.6 mH

    EBP

    133 Hz

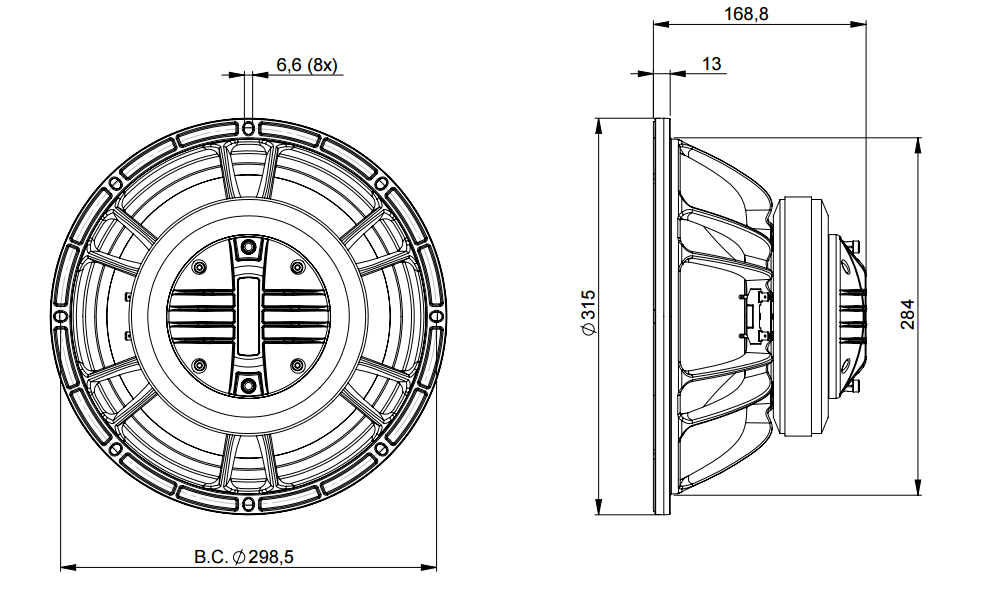

    Mounting and Shipping Info

    Overall Diameter

    315 mm (12.4 in)

    Bolt Circle Diameter

    298 mm (11.7 in)

    Baffle Cutout Diameter

    284 mm (11.14 in)

    Depth

    169 mm (6.65 in)

    Flange and Gasket Thickness

    13 mm (0.51 in)

    Net Weight

    8.4 kg (18.52 lb)

    Shipping Units

    1 pcs

    Shipping Weight

    9.7 kg (21.38 lb)

    Shipping Box

    425x425x224 mm (16.73x16.73x8.82 in)

    Service Kit

    hf Replacement Diaphragm
    MMD3BTN8M
    lf Recone Kit
    RCK12FHX768
    • Cone

    • Gasket

    • Centering Shims
