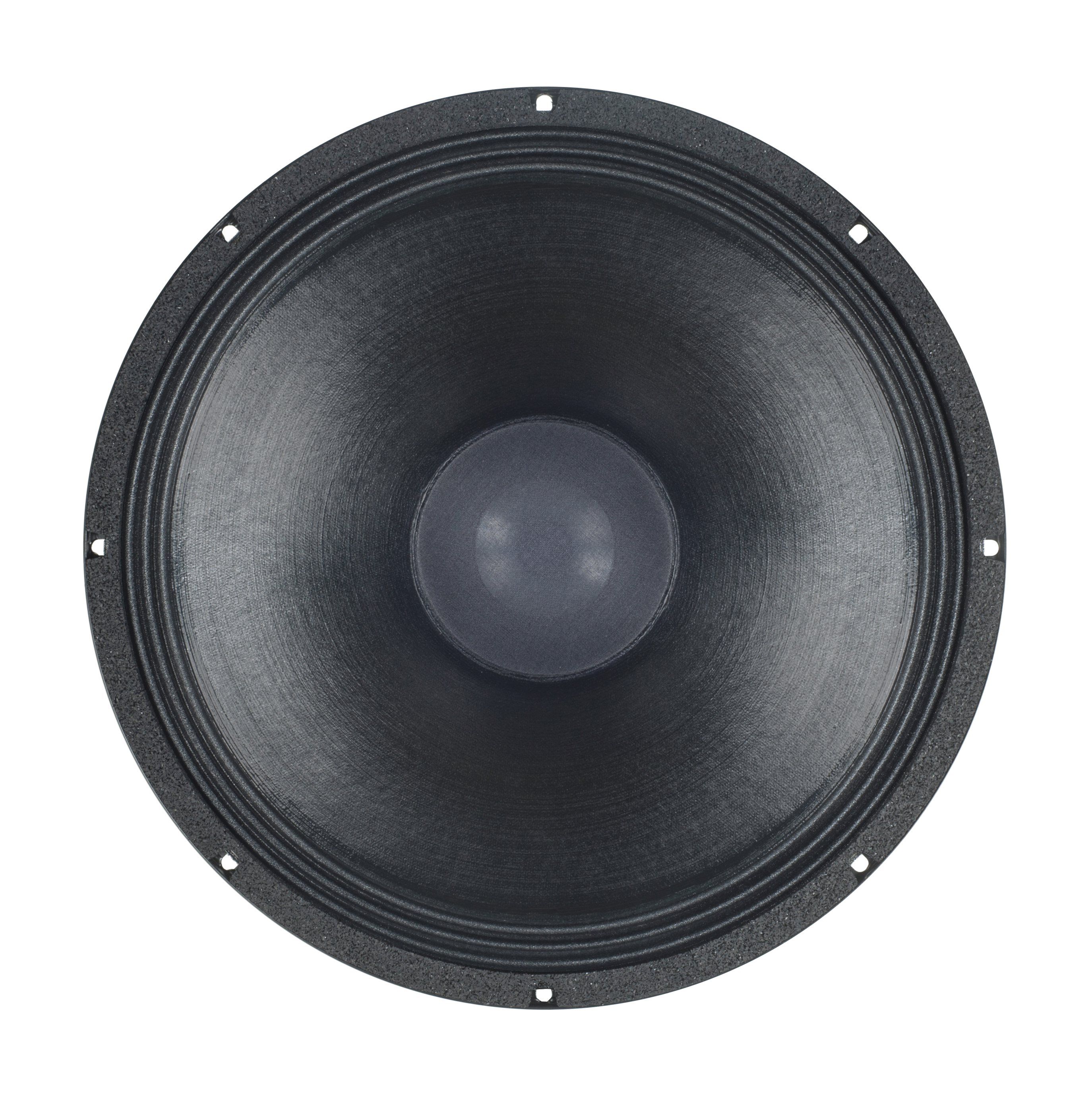

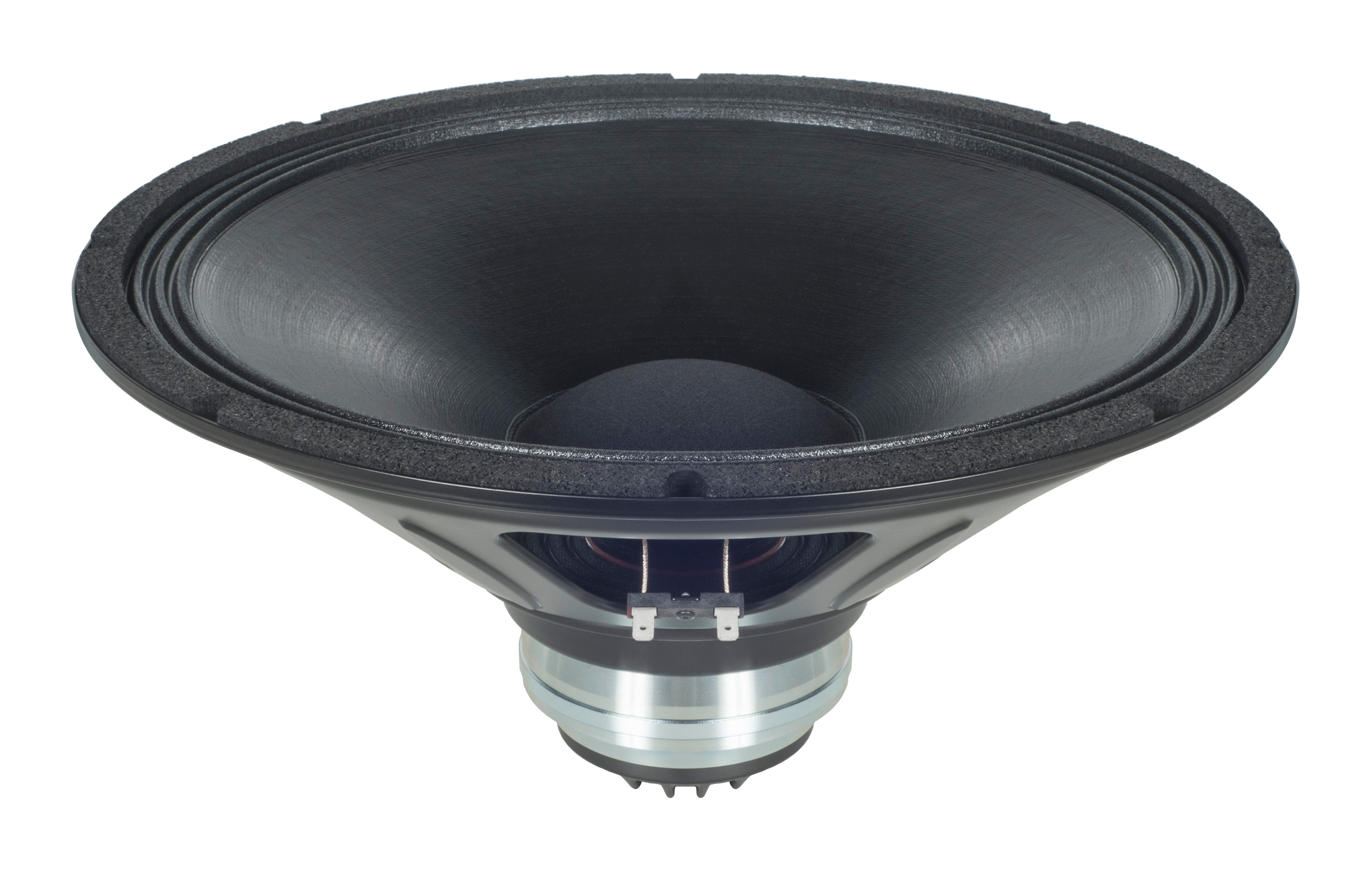

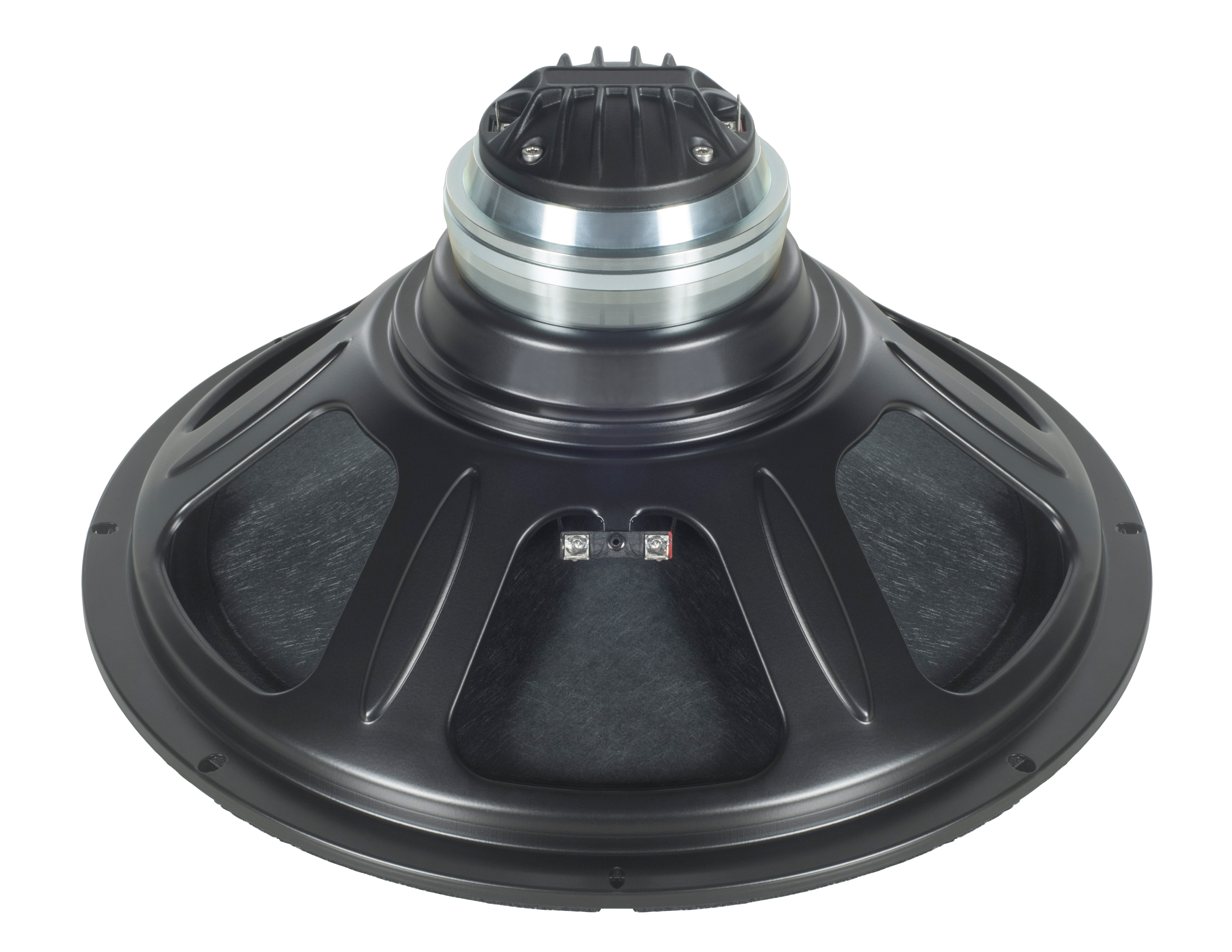

15CLX64
15 inch
NEW
The CLX series products incorporate a heavy-gauge metal basket construction paired with a cost-optimized single neodymium magnet motor design for enhanced structural integrity and efficiency. This coaxial solution combines a lightweight woofer with a high-fidelity HF driver, enabling balanced acoustic output across the frequency spectrum. This configuration minimizes overall system weight while maximizing performance metrics, allowing audio engineers to develop solutions with superior cost-to-performance ratios suitable for compact, high-value applications.
Features
- 500 W continuous program power capacity
- 80° nominal coverage
- 40 - 17000 Hz response
- 95.2 dB sensitivity
- Single Neodymium magnet assembly
- Aluminum demodulating ring for very low distortion
General
Nominal Diameter
380 mm (15 in)

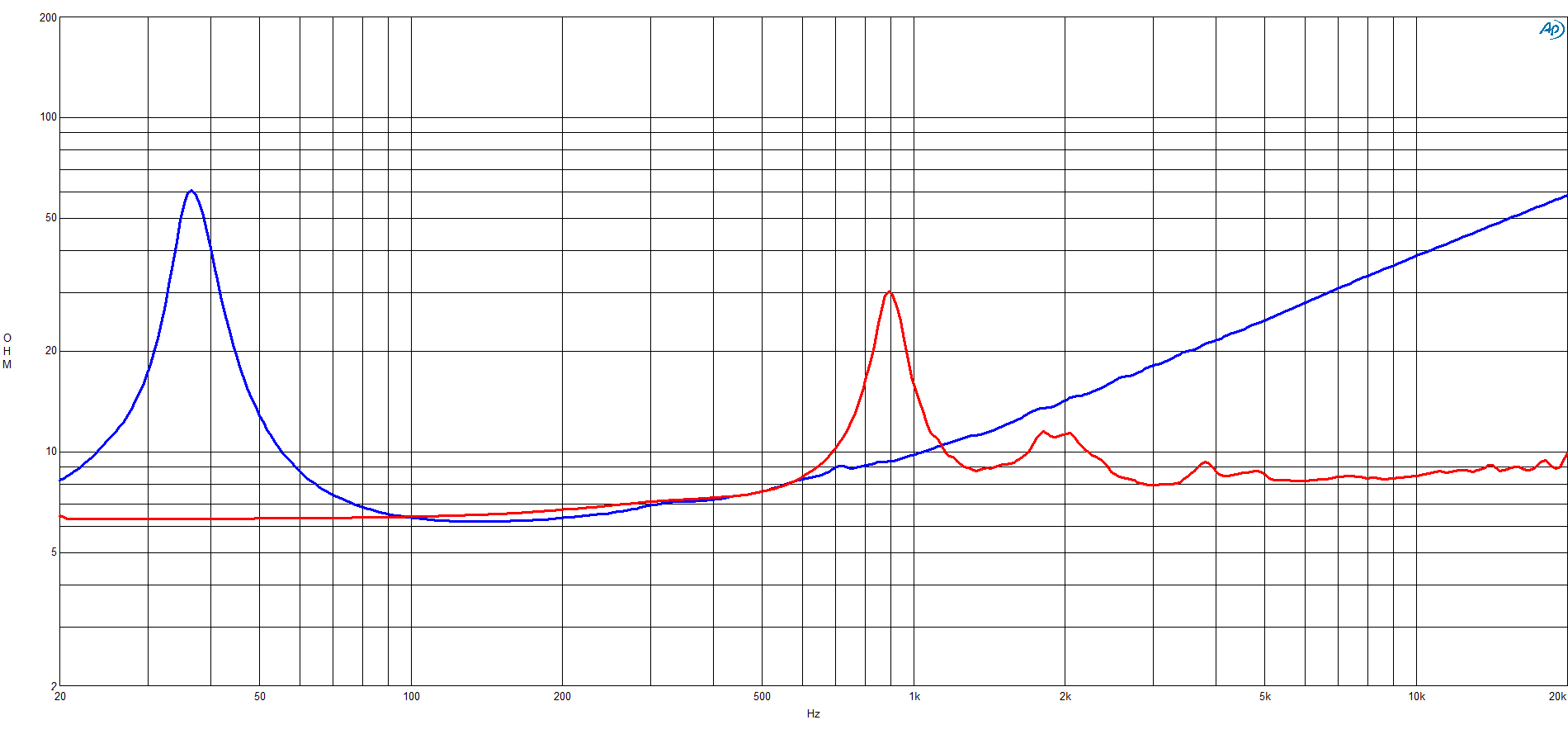

Nominal Impedance
8 Ω

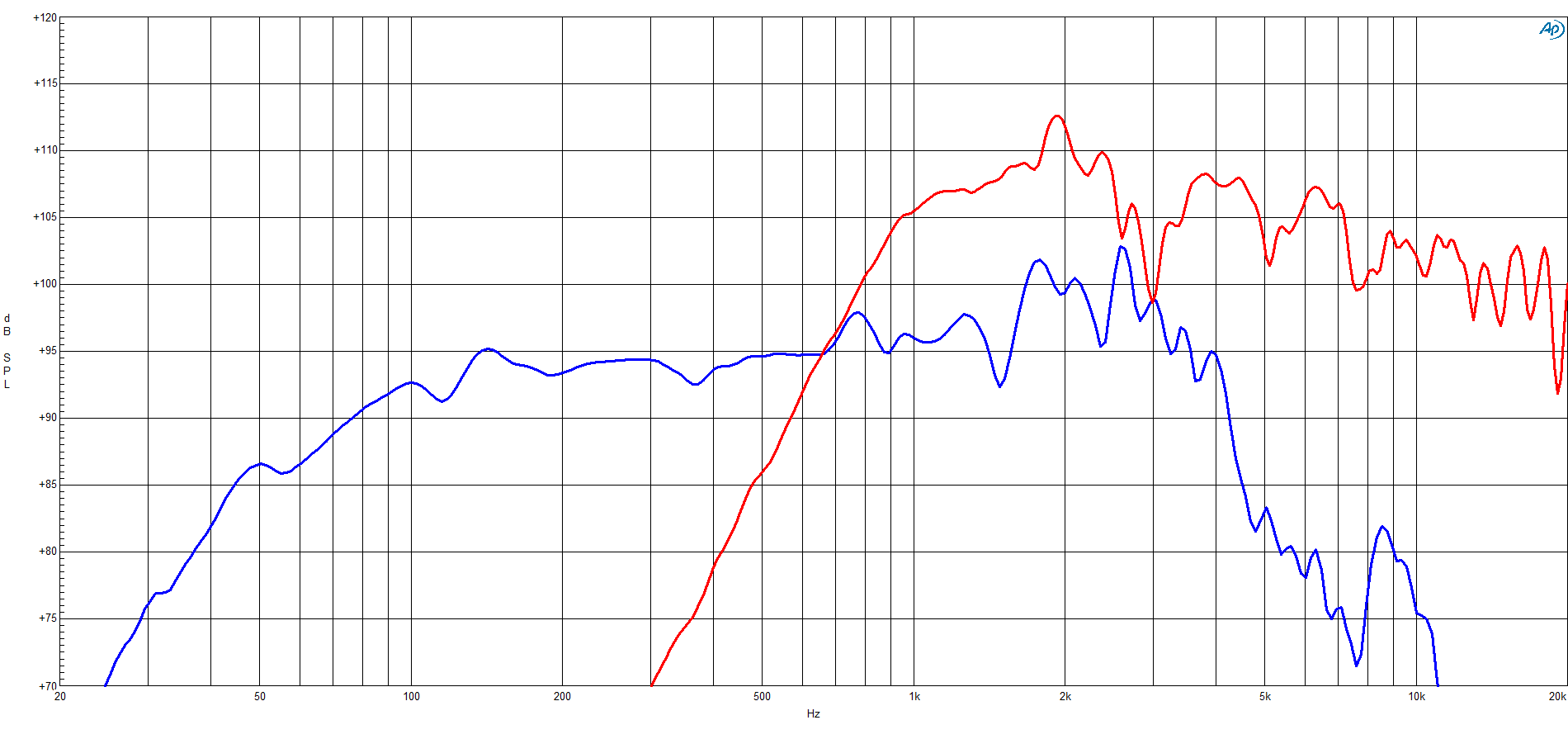

Frequency Range
40 Hz - 17000 Hz

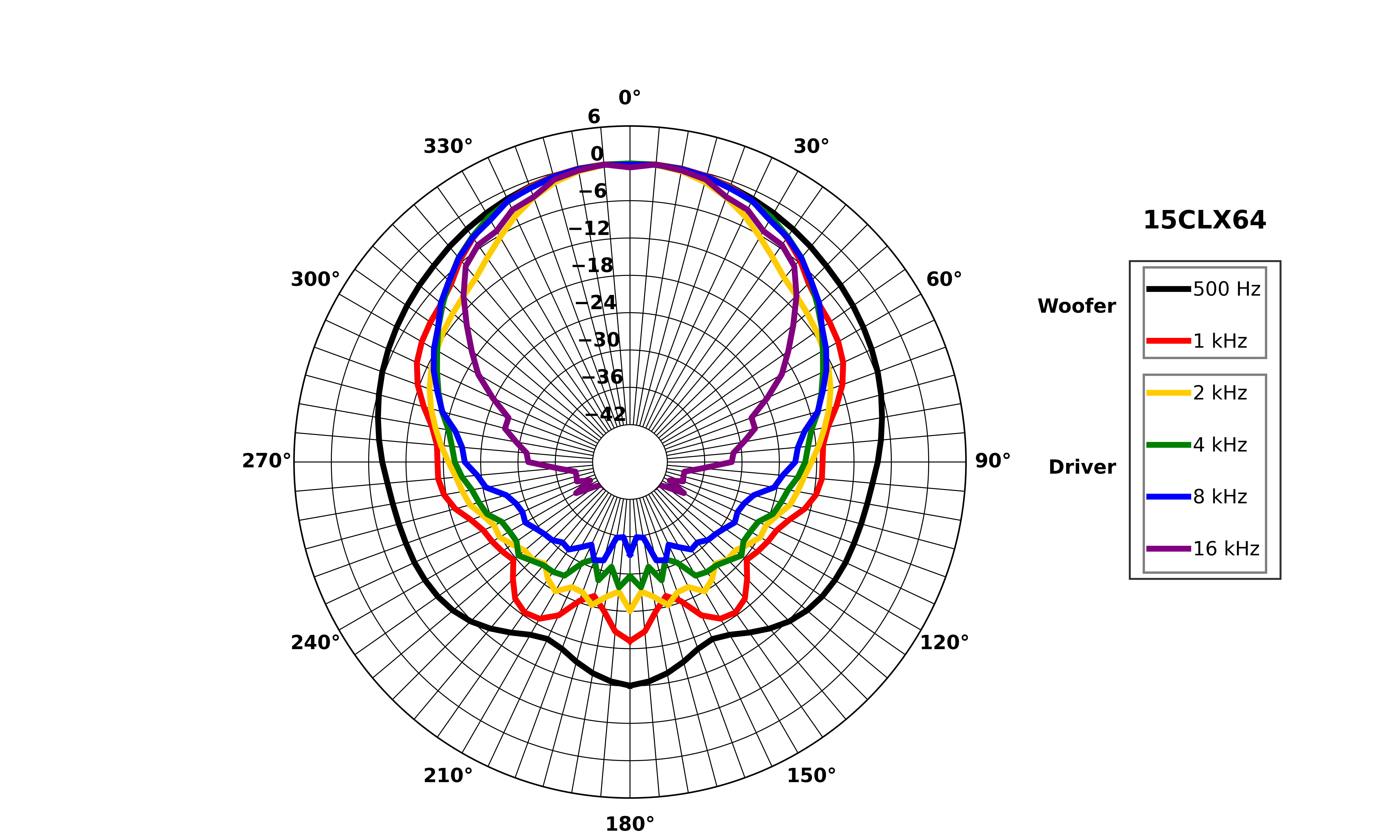

Dispersion Angle
80 °
Specifications LF unit
Nominal Diameter
380 mm (15 in)
Nominal Impedance
8 Ω
Minimum Impedance
6.2 Ω
Nominal Power Handling
250 W
Continuous Power Handling
500 W
Sensitivity
95.2 dB
Voice Coil Diameter
64 mm (2.5 in)
Winding Material
Copper
Former Material
Glass Fibre
Winding Depth
14.5 mm (0.57 in)
Magnetic Gap Depth
8 mm (0.31 in)
Flux Density
0.9 T
Specifications HF unit
Nominal Diameter
380 mm (15 in)
Nominal Impedance
8 Ω
Minimum Impedance
7.9 Ω
Nominal Power Handling
70 W
Continuous Power Handling
140 W
Sensitivity
106 dB
Frequency Range
1 kHz - 17 kHz
Recommended Crossover
1.2 kHz
Voice Coil Diameter
51 mm (2 in)
Winding Material
Aluminium
Inductance
0.14 mH
Flux Density
1.6 T
Diaphragm Material
HT Polymer
Design
Surround Shape
Triple Roll
Magnet Material
Neodymium Ring
Spider
Single
Woofer Cone Treatment
WP Waterproof Front Side
Parameters
Fs
37 Hz
Re
5.5 Ω
Qes
0.81
Qms
9.4
Qts
0.75
Vas
227 dm³ (8.02 ft³)
Sd
855 cm² (132.5 in²)
η0
1.44 %
Xmax
5.3 mm
Xvar
8 mm
Mms
82 g
Bl
11.5 Tm
Le
1.05 mH
EBP
46 Hz

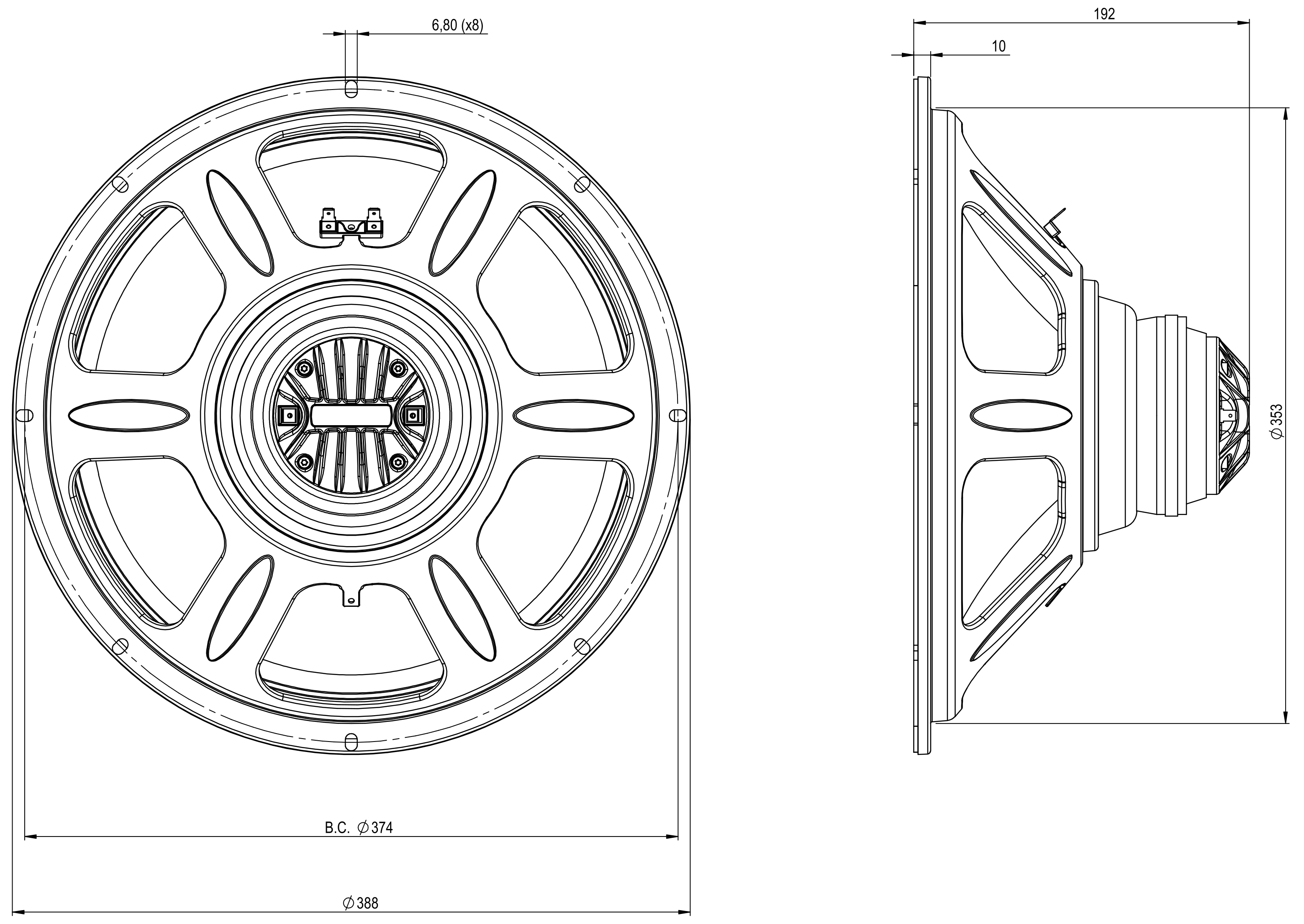

Mounting and Shipping Info
Overall Diameter
388 mm (15.3 in)
Bolt Circle Diameter
372 mm (14.65 in)
Baffle Cutout Diameter
353 mm (13.9 in)
Depth
192 mm (7.56 in)
Flange and Gasket Thickness
10 mm (0.39 in)
Net Weight
3.8 kg (8.38 lb)
Service Kit
hf Replacement Diaphragm
MMD5508
