    15FCX76

    15 inches

    Features


    800 W continuous program power capacity
    80° nominal coverage
    40 - 18000 Hz response
    98 dB sensitivity
    50.5 mm (2”) HF unit exit diameter
    Single Ferrite magnet assembly
    Aluminium demodulating ring allows a very low distortion figure

    General

    Nominal Diameter

    380 mm (15 in)

    Nominal Impedance

    8 Ω

    Frequency Range

    40 Hz - 18000 Hz

    Dispersion Angle

    80 °

    Specifications LF unit

    Sensitivity

    98 dB

    Nominal Power Handling

    400 W

    Continuous Power Handling

    800 W

    Voice Coil Diameter

    76 mm (3 in)

    Winding Material

    Copper

    Flux Density

    1 T

    Nominal Diameter

    380 mm (15 in)

    Nominal Impedance

    8 Ω

    Minimum Impedance

    6 Ω

    Former Material

    Glass Fibre

    Winding Depth

    16.5 mm (0.65 in)

    Magnetic Gap Depth

    8 mm (0.31 in)

    Woofer Cone Treatment

    WP Waterproof Front Side

    Specifications HF unit

    Sensitivity

    105 dB

    Nominal Power Handling

    80 W

    Continuous Power Handling

    160 W

    Voice Coil Diameter

    75 mm (3 in)

    Winding Material

    Aluminium

    Flux Density

    1.6 T

    Nominal Diameter

    380 mm (15 in)

    Nominal Impedance

    8 Ω

    Minimum Impedance

    7.5 Ω

    Recommended Crossover

    1.2 kHz

    Inductance

    0.14 mH

    Diaphragm Material

    Titanium

    Design

    Magnet Material

    Ferrite

    Woofer Cone Treatment

    WP Waterproof Front Side

    Parameters

    Fs

    40 Hz

    Re

    5.2 Ω

    Qes

    0.47

    Qms

    8.3

    Qts

    0.44

    Vas

    187 dm³ (6.6 ft³)

    Sd

    855 cm² (132.5 sq²)

    η0

    2.5 %

    Xvar

    7.5 mm

    Mms

    87 g

    Bl

    15.6 Tm

    Le

    1.2 mH

    EBP

    85 Hz

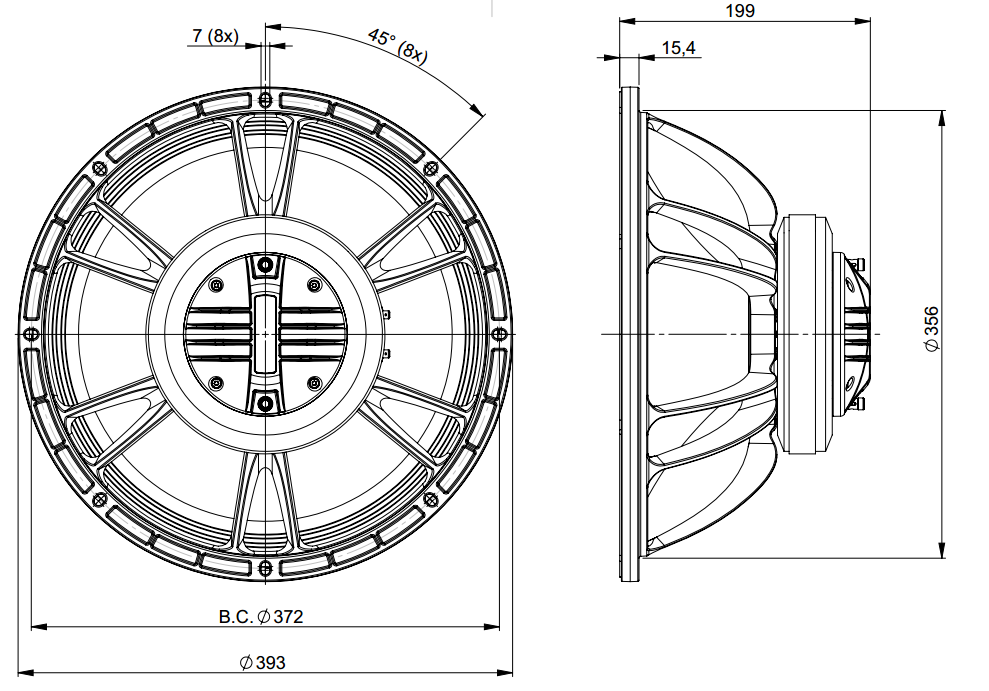

    Mounting and Shipping Info

    Overall Diameter

    393 mm (15.5 in)

    Bolt Circle Diameter

    374 mm (16.7 in)

    Baffle Cutout Diameter

    353 mm (13.9 in)

    Depth

    199 mm (7.83 in)

    Flange and Gasket Thickness

    16 mm (0.62 in)

    Net Weight

    9 kg (19.8 lb)

    Shipping Units

    1 pcs

    Shipping Weight

    10.6 kg (23.37 lb)

    Shipping Box

    500x495x275 mm (19.69x19.49x10.83 in)

    Service Kit

    hf Replacement Diaphragm
    MMD3BTN8M
    lf Recone Kit
    RCK15FCX768
    • Cone

    • Gasket

    • Centering Shims
