    5CXN44

    5 inches

    Features


    300 W continuous program power capacity
    80° nominal coverage
    70 - 18000 Hz response
    86.5 dB sensitivity
    Aluminium demodulating ring for very low distortion

    General

    Nominal Diameter

    127 mm (5 in)

    Nominal Impedance

    8 Ω

    Frequency Range

    70 Hz - 18000 Hz

    Dispersion Angle

    80 °

    Specifications LF unit

    Sensitivity

    86.5 dB

    Nominal Power Handling

    150 W

    Continuous Power Handling

    300 W

    Voice Coil Diameter

    44 mm (1.7 in)

    Winding Material

    Copper

    Flux Density

    0.95 T

    Nominal Diameter

    127 mm (5 in)

    Nominal Impedance

    8 Ω

    Minimum Impedance

    6.1 Ω

    Former Material

    Kapton

    Winding Depth

    14 mm (0.55 in)

    Magnetic Gap Depth

    6 mm (0.24 in)

    Woofer Cone Treatment

    WP Waterproof Front Side

    Specifications HF unit

    Sensitivity

    101 dB

    Nominal Power Handling

    25 W

    Continuous Power Handling

    50 W

    Voice Coil Diameter

    36 mm (1.4 in)

    Winding Material

    Aluminum

    Flux Density

    1.54 T

    Nominal Diameter

    127 mm (5 in)

    Nominal Impedance

    8 Ω

    Minimum Impedance

    7.5 Ω

    Recommended Crossover

    2 kHz

    Inductance

    0.14 mH

    Diaphragm Material

    HT Polymer

    Design

    Magnet Material

    Neodymium Ring

    Woofer Cone Treatment

    WP Waterproof Front Side

    Parameters

    Fs

    70 Hz

    Re

    4.7 Ω

    Qes

    0.47

    Qms

    9.6

    Qts

    0.45

    Vas

    4.3 dm³ (0.15 ft³)

    Sd

    95 cm² (14.73 sq²)

    η0

    0.31 %

    Xvar

    6 mm

    Mms

    15 g

    Bl

    8.1 Tm

    Le

    0.37 mH

    EBP

    149 Hz

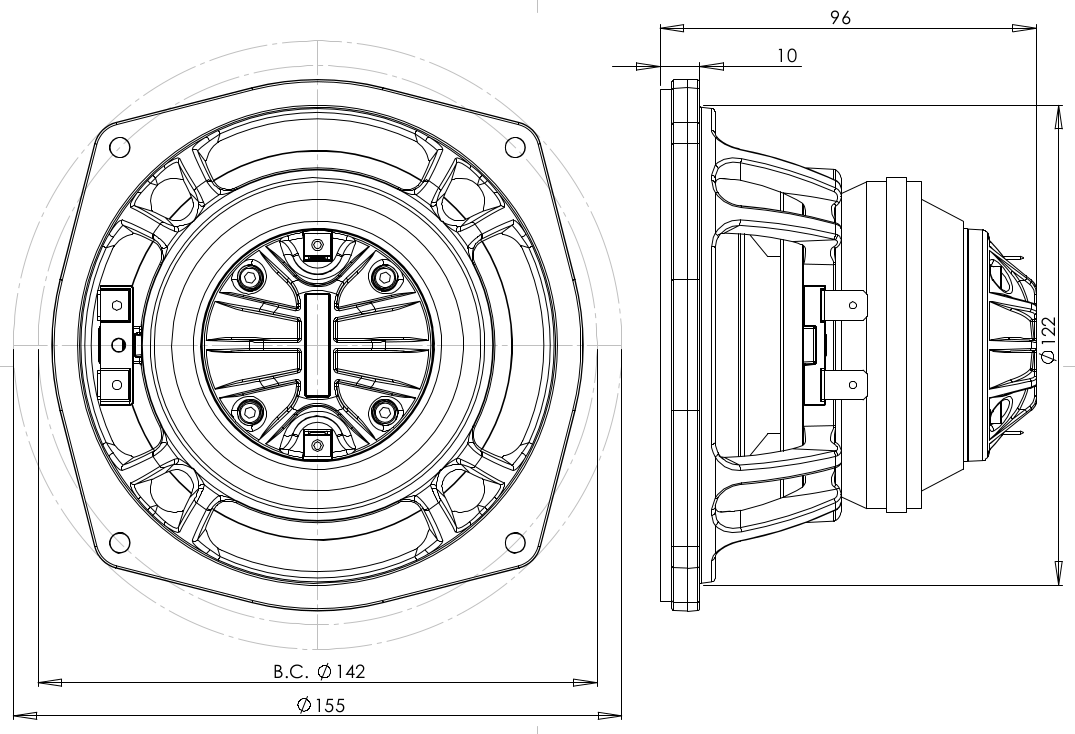

    Mounting and Shipping Info

    Overall Diameter

    155 mm (6.1 in)

    Bolt Circle Diameter

    142 mm (5.6 in)

    Baffle Cutout Diameter

    122 mm (4.8 in)

    Depth

    96 mm (3.78 in)

    Flange and Gasket Thickness

    10 mm (0.39 in)

    Net Weight

    1.15 kg (2.54 lb)

    Shipping Units

    1 pcs

    Shipping Weight

    1.6 kg (3.53 lb)

    Shipping Box

    255x255x150 mm (10.04x10.04x5.91 in)

    Service Kit

    hf Replacement Diaphragm
    MMDDE1108
    lf Recone Kit
    RCK005CXN448
    • Cone

    • Gasket

    • Centering Shims
