    6CXN36

    6.5 inches

    NEW

    Unique to B&C, a complete lineup of high sensitivity and power handling 4”, 5" and 6.5" frame transducers. These high technology products are made with our famously critical quality control, allowing new compact loudspeaker designs with appropriately scaled performance. Combined with a 1.4” dome compression driver, our 6CXN36 coaxial is one of the most compact and cost effective full range transducers that we have ever built, offering 90 - 18000Hz frequency response and a 90° conical coverage pattern.

    Features


    8 ohm LF unit, 16 ohm HF unit
    200 W continuous program power capacity
    90° nominal coverage
    90 - 18000 Hz response
    90 dB sensitivity
    Aluminium demodulating ring for very low distortion

    General

    Nominal Diameter

    165 mm (6.5 in)

    Nominal Impedance

    8 Ω

    Frequency Range

    90 Hz - 18000 Hz

    Dispersion Angle

    90 °

    Specifications LF unit

    Sensitivity

    90 dB

    Nominal Power Handling

    100 W

    Continuous Power Handling

    200 W

    Voice Coil Diameter

    34 mm (1.3 in)

    Winding Material

    Copper

    Flux Density

    0.74 T

    Nominal Diameter

    165 mm (6.5 in)

    Nominal Impedance

    8 Ω

    Minimum Impedance

    6.8 Ω

    Former Material

    Glass Fibre

    Winding Depth

    11 mm (0.43 in)

    Magnetic Gap Depth

    6 mm (0.24 in)

    Woofer Cone Treatment

    WP Waterproof Front Side

    Specifications HF unit

    Sensitivity

    100 dB

    Nominal Power Handling

    25 W

    Continuous Power Handling

    50 W

    Voice Coil Diameter

    36 mm (1.4 in)

    Winding Material

    Aluminium

    Flux Density

    1.65 T

    Nominal Diameter

    165 mm (6.5 in)

    Nominal Impedance

    8 Ω

    Minimum Impedance

    10.2 Ω

    Recommended Crossover

    2 kHz

    Inductance

    0.14 mH

    Diaphragm Material

    HT Polymer

    Design

    Magnet Material

    Neodymium Ring

    Woofer Cone Treatment

    WP Waterproof Front Side

    Parameters

    Fs

    90 Hz

    Re

    5.8 Ω

    Qes

    1.17

    Qms

    5

    Qts

    0.95

    Vas

    7.5 dm³ (0.26 ft³)

    Sd

    132 cm² (20.46 sq²)

    η0

    0.45 %

    Xvar

    5 mm

    Mms

    10.2 g

    Bl

    5.34 Tm

    Le

    0.94 mH

    EBP

    77 Hz

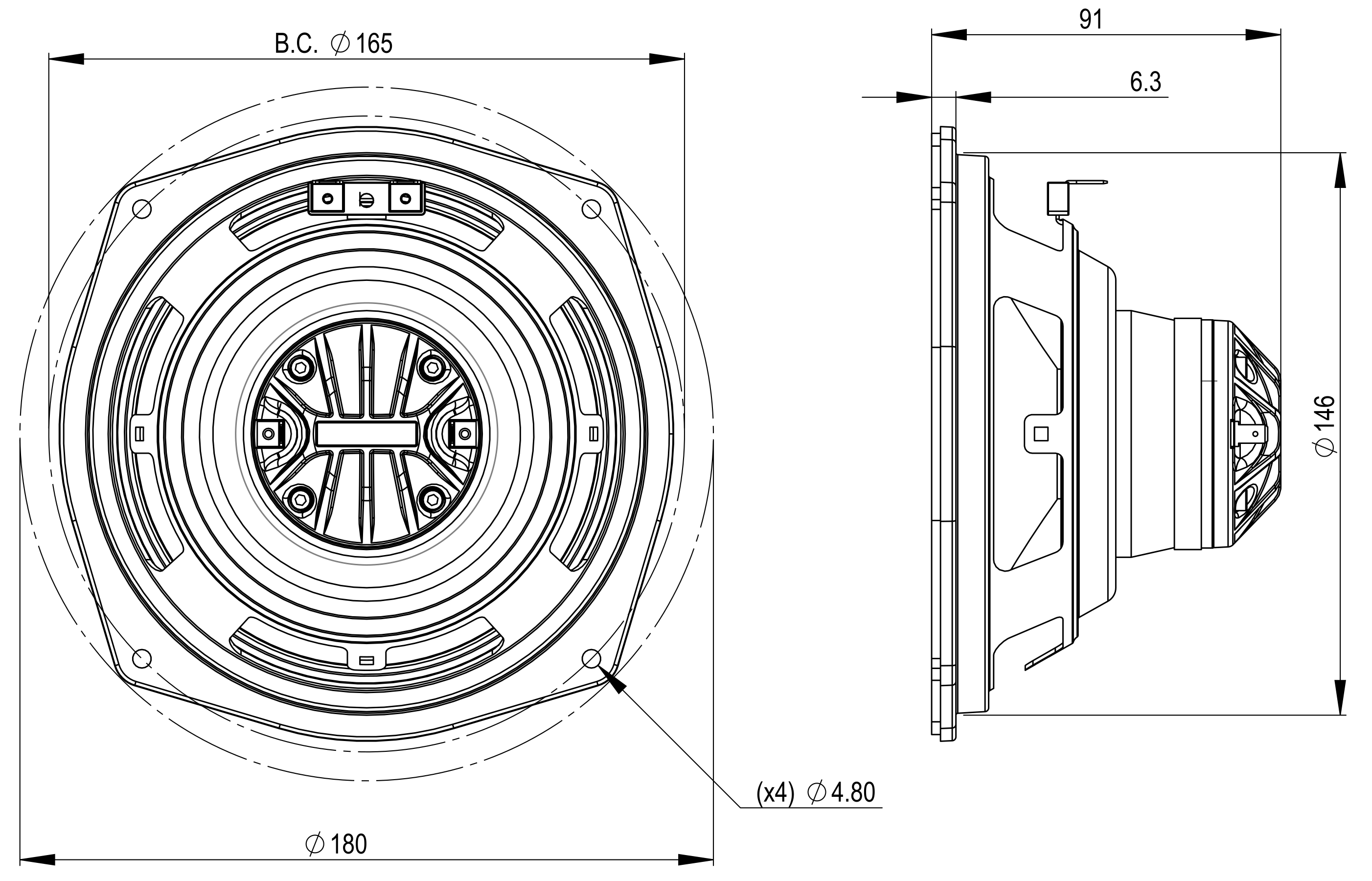

    Mounting and Shipping Info

    Overall Diameter

    180 mm (7.09 in)

    Bolt Circle Diameter

    165 mm (6.5 in)

    Baffle Cutout Diameter

    146 mm (5.75 in)

    Depth

    91 mm (3.58 in)

    Flange and Gasket Thickness

    6 mm (0.25 in)

    Net Weight

    0.7 kg (1.54 lb)

    Shipping Units

    1 pcs

    Shipping Weight

    1.15 kg (2.54 lb)

    Shipping Box

    255x255x150 mm (10.04x10.04x5.91 in)

    Service Kit

    hf Replacement Diaphragm
    MMDDE11016
    lf Recone Kit
    RCK006CXN368
    • Cone

    • Basket

    • Dust Cap

    • Wooterprof Treatment

    • Centering Shims

    Crossover

    FBCXN36
