    6FHX51

    6.5 inches

    Features


    300 W continuous program power capacity
    70° nominal coverage
    85 - 18000 Hz response
    93 dB sensitivity
    20.1 mm (0.79”) HF unit exit diameter

    General

    Nominal Diameter

    170 mm (6.5 in)

    Nominal Impedance

    8 Ω

    Frequency Range

    85 Hz - 18000 Hz

    Dispersion Angle

    70 °

    Specifications LF unit

    Sensitivity

    93 dB

    Nominal Power Handling

    150 W

    Continuous Power Handling

    300 W

    Voice Coil Diameter

    51 mm (2 in)

    Winding Material

    Copper

    Flux Density

    1.05 T

    Nominal Diameter

    170 mm (6.5 in)

    Nominal Impedance

    8 Ω

    Minimum Impedance

    6.5 Ω

    Former Material

    Kapton

    Winding Depth

    13 mm (0.51 in)

    Magnetic Gap Depth

    6 mm (0.24 in)

    Woofer Cone Treatment

    WP Waterproof Front Side

    Specifications HF unit

    Sensitivity

    108.5 dB

    Nominal Power Handling

    10 W

    Continuous Power Handling

    20 W

    Voice Coil Diameter

    25 mm (1 in)

    Winding Material

    Aluminium

    Flux Density

    1.65 T

    Nominal Diameter

    170 mm (6.5 in)

    Nominal Impedance

    8 Ω

    Minimum Impedance

    7 Ω

    Recommended Crossover

    2.5 kHz

    Inductance

    0.1 mH

    Diaphragm Material

    Polyester

    Design

    Magnet Material

    Ferrite (LF) - Neodym. Ring (HF)

    Woofer Cone Treatment

    WP Waterproof Front Side

    Parameters

    Fs

    85 Hz

    Re

    5.5 Ω

    Qes

    0.4

    Qms

    7.8

    Qts

    0.37

    Vas

    5 dm³ (0.18 ft³)

    Sd

    132 cm² (20.5 sq²)

    η0

    0.83 %

    Xvar

    5.7 mm

    Mms

    16 g

    Bl

    11.3 Tm

    Le

    1 mH

    EBP

    213 Hz

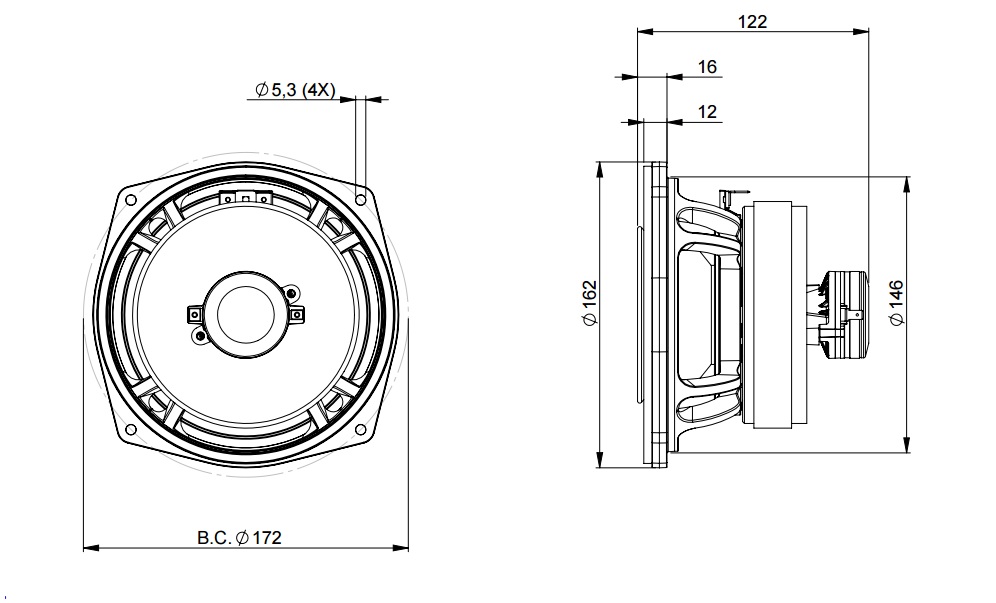

    Mounting and Shipping Info

    Overall Diameter

    187 mm (7.4 in)

    Bolt Circle Diameter

    172 mm (6.7 in)

    Baffle Cutout Diameter

    146 mm (5.75 in)

    Depth

    122 mm (4.8 in)

    Flange and Gasket Thickness

    12 mm (0.47 in)

    Net Weight

    2.6 kg (5.73 lb)

    Shipping Units

    1 pcs

    Shipping Weight

    3.05 kg (6.72 lb)

    Shipping Box

    255x255x150 mm (10.04x10.04x5.91 in)

    Service Kit

    hf Replacement Diaphragm
    MMDDE58
    lf Recone Kit
    RCK06FHX518
    • Cone

    • Gasket

    • Centering Shims
