  • Coaxials

    6HCX51

    6.5 inches

    Features


    300 W continuous program power capacity
    70° nominal coverage
    90 - 18000 Hz response
    92 dB sensitivity
    Single Neodymium magnet assembly
    20.1 mm (0.79”) HF unit exit diameter

    General

    Nominal Diameter

    170 mm (6.5 in)

    Nominal Impedance

    8 Ω

    Frequency Range

    90 Hz - 18000 Hz

    Dispersion Angle

    70 °

    Specifications LF unit

    Sensitivity

    92 dB

    Nominal Power Handling

    150 W

    Continuous Power Handling

    300 W

    Voice Coil Diameter

    51 mm (2 in)

    Winding Material

    Copper

    Flux Density

    1.1 T

    Nominal Diameter

    170 mm (6.5 in)

    Nominal Impedance

    8 Ω

    Minimum Impedance

    6 Ω

    Former Material

    Kapton

    Winding Depth

    13 mm (0.51 in)

    Magnetic Gap Depth

    6 mm (0.24 in)

    Woofer Cone Treatment

    TWP Waterproof Both Sides

    Specifications HF unit

    Sensitivity

    105 dB

    Nominal Power Handling

    25 W

    Continuous Power Handling

    50 W

    Voice Coil Diameter

    36 mm (1.4 in)

    Winding Material

    Aluminium

    Flux Density

    1.8 T

    Nominal Diameter

    170 mm (6.5 in)

    Nominal Impedance

    8 Ω

    Minimum Impedance

    7.5 Ω

    Recommended Crossover

    2.2 kHz

    Inductance

    0.06 mH

    Diaphragm Material

    Polyester

    Design

    Magnet Material

    Neodymium Ring

    Woofer Cone Treatment

    TWP Waterproof Both Sides

    Parameters

    Fs

    89 Hz

    Re

    5.2 Ω

    Qes

    0.4

    Qms

    7.5

    Qts

    0.38

    Vas

    5 dm³ (0.18 ft³)

    Sd

    132 cm² (20.5 sq²)

    η0

    0.8 %

    Xvar

    5.5 mm

    Mms

    16 g

    Bl

    10.9 Tm

    Le

    0.8 mH

    EBP

    223 Hz

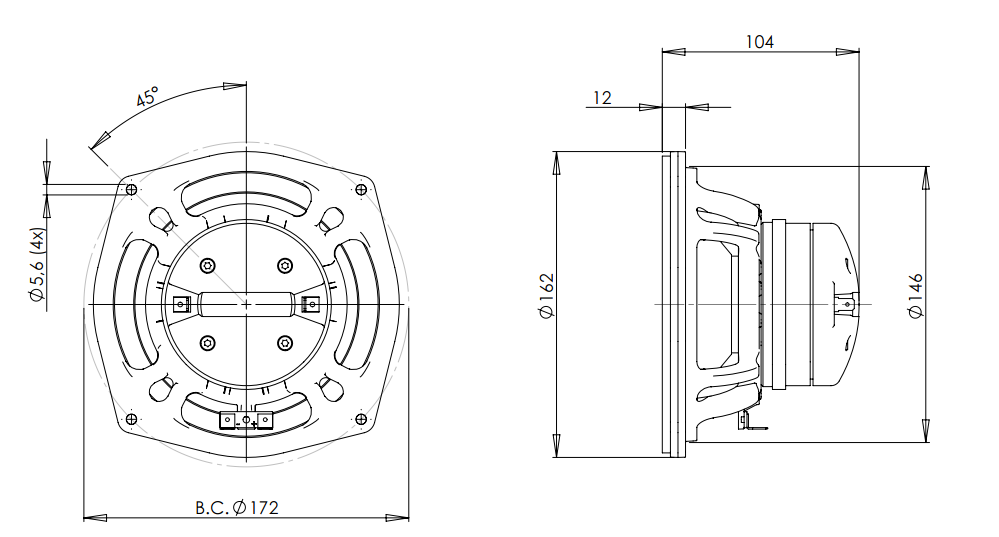

    Mounting and Shipping Info

    Overall Diameter

    187 mm (7.4 in)

    Bolt Circle Diameter

    172 mm (6.7 in)

    Baffle Cutout Diameter

    146 mm (5.75 in)

    Depth

    104 mm (4.1 in)

    Flange and Gasket Thickness

    11 mm (0.4 in)

    Net Weight

    1.6 kg (3.53 lb)

    Shipping Units

    1 pcs

    Shipping Weight

    2.05 kg (4.52 lb)

    Shipping Box

    255x255x150 mm (10.04x10.04x5.91 in)

    Service Kit

    hf Replacement Diaphragm
    MMD0128
    lf Recone Kit
    RCK06HCX518
    • Cone

    • Gasket

    • Centering Shims
