    1 inches

    While shrink-ray technology may not have escaped the 1990s, we have succeeded in creating a series of highly compact drivers, not only permitting close spacing but also reducing weight and cost at the same time. The DE111 is a new variant of our DE110, offering a lower crossover frequency of 1.2kHz with its updated ketone polymer suspension and dome. 107dB sensitivity and 50W continuous power handling from a 1.4” voice coil make this tiny driver universally applicable. This driver is primed for consideration in a new generation of lighter, more compact line array loudspeakers.


    Ultra Compact 60mm diameter
    50 W continuous program power capacity
    1" horn throat diameter
    36 mm (1.4 in) aluminium voice coil
    HT Polymer diaphragm
    1000 - 17000 Hz response
    107 dB sensitivity


    Throat Diameter

    25 mm (1 in)

    Nominal Impedance

    8 Ω

    Minimum Impedance

    8 Ω

    Nominal Power Handling

    25 W

    Continuous Power Handling

    50 W


    107 dB

    Frequency Range

    1 kHz - 17 kHz

    Recommended Crossover

    1.2 kHz

    Voice Coil Diameter

    36 mm (1.4 in)

    Winding Material



    0.14 mH

    Diaphragm Material

    HT Polymer

    Flux Density

    1.8 T

    Max Frequency Range

    17 kHz

    Min Frequency Range

    1 kHz

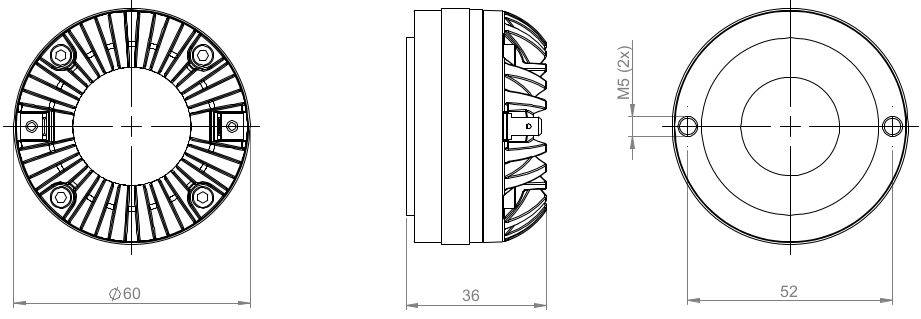

    Mounting and Shipping Info

    Overall Diameter

    60 mm (2.36 in)


    36 mm (1.42 in)

    Net Weight

    0.32 kg (0.71 lb)

    Shipping Units

    1 pcs

    Shipping Weight

    0.35 kg (0.76 lb)

    Shipping Box

    105x105x65 mm (4.13x4.13x2.56 in)
