    DE120

    1 inches

    Archived

    Features


    40 W continuous program power capacity
    1" horn throat diameter
    36 mm (1.4 in) aluminium voice coil
    Mylar diaphragm
    1500 - 18000 Hz response
    106 dB sensitivity

    Specifications

    Throat Diameter

    25 mm (1 in)

    Nominal Impedance

    8 Ω

    Minimum Impedance

    8 Ω

    Nominal Power Handling

    20 W

    Continuous Power Handling

    40 W

    Sensitivity

    106 dB

    Frequency Range

    2 kHz - 18 kHz

    Recommended Crossover

    2 kHz

    Voice Coil Diameter

    36 mm (1.4 in)

    Winding Material

    Aluminium

    Inductance

    0.14 mH

    Diaphragm Material

    Mylar

    Flux Density

    1.9 T

    Max Frequency Range

    18 kHz

    Min Frequency Range

    2 kHz

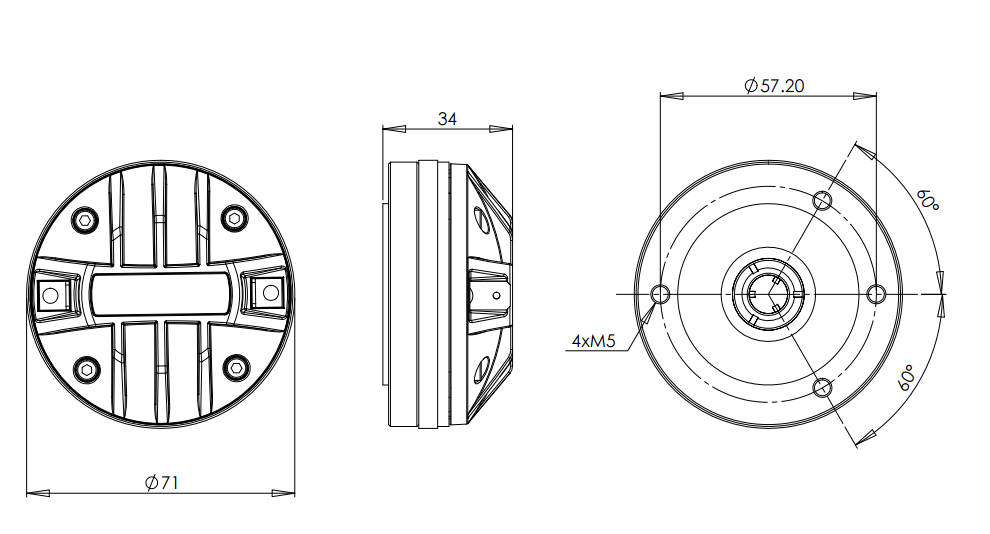

    Mounting and Shipping Info

    Overall Diameter

    71 mm (2.8 in)

    Depth

    34 mm (1.34 in)

    Net Weight

    0.45 kg (0.98 lb)

    Shipping Units

    1 pcs

    Shipping Weight

    0.48 kg (1.05 lb)

    Shipping Box

    105x105x65 mm (4.13x4.13x2.56 in)
