Features
- 90° x 60° angular coverage
- 60 W continuous program power capacity
- 36 mm (1.7 in) aluminium voice coil
- HT Polymer diaphragm
- 1000 - 17000 Hz response
- 108.5 dB sensitivity
Specifications Horn unit
Throat Diameter
25 mm (1 in)
Nominal Coverage Horizontal
90 °
Nominal Coverage Vertical
60 °
Cutoff Frequency
1.5 kHz
Material
ABS
Design
Hyperbolic Cosine Flare
Specifications HF unit
Throat Diameter
25 mm (1 in)
Nominal Impedance
8 Ω
Minimum Impedance
7.9 Ω
Nominal Power Handling
30 W
Continuous Power Handling
60 W
Sensitivity
108.5 dB
Frequency Range
1 kHz - 17 kHz
Recommended Crossover
1.5 kHz
Voice Coil Diameter
36 mm (1.4 in)
Winding Material
Aluminium
Inductance
0.09 mH
Flux Density
1.8 T
Diaphragm Material
HT Polymer

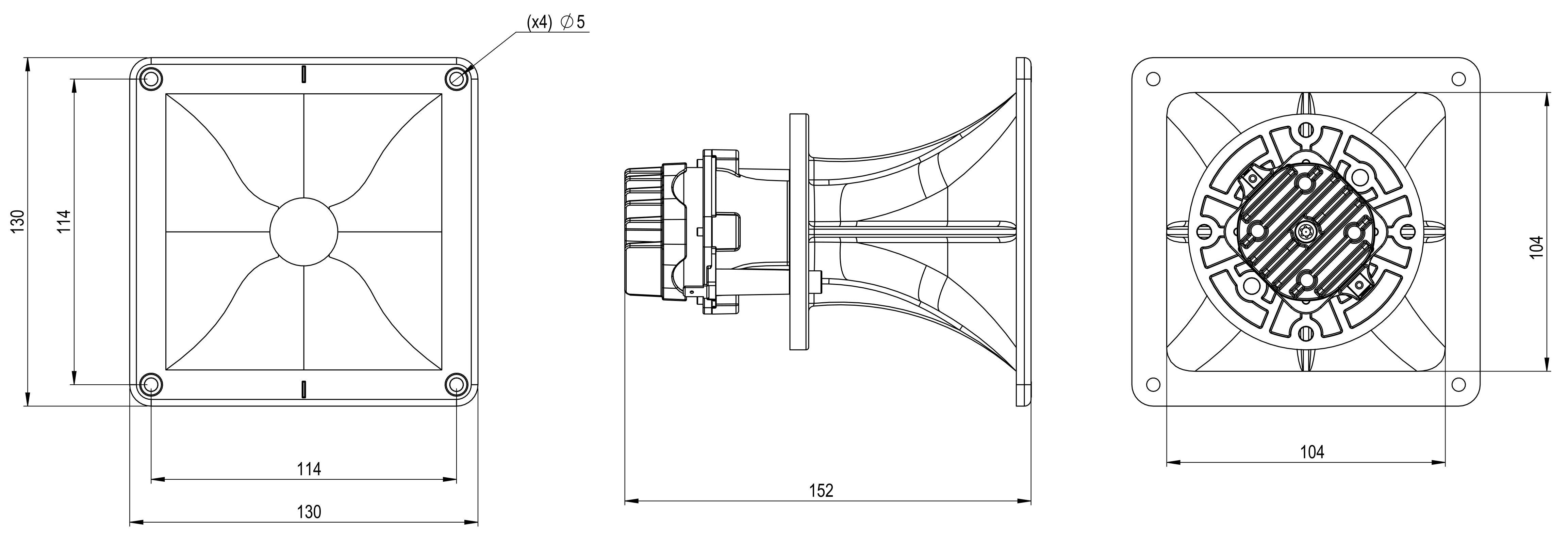

Mounting and Shipping Info
Depth
152 mm (5.98 in)
Net Weight
