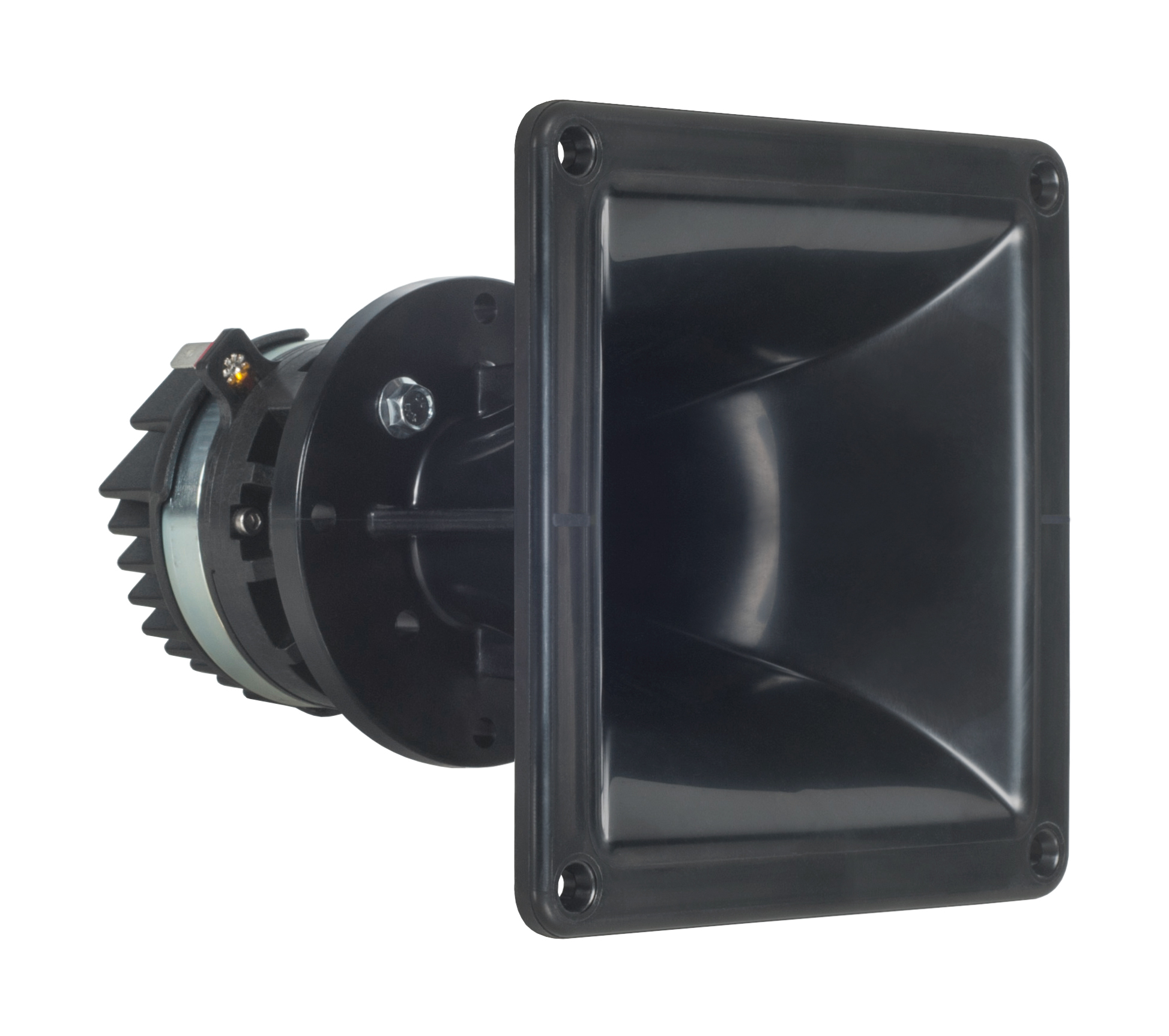

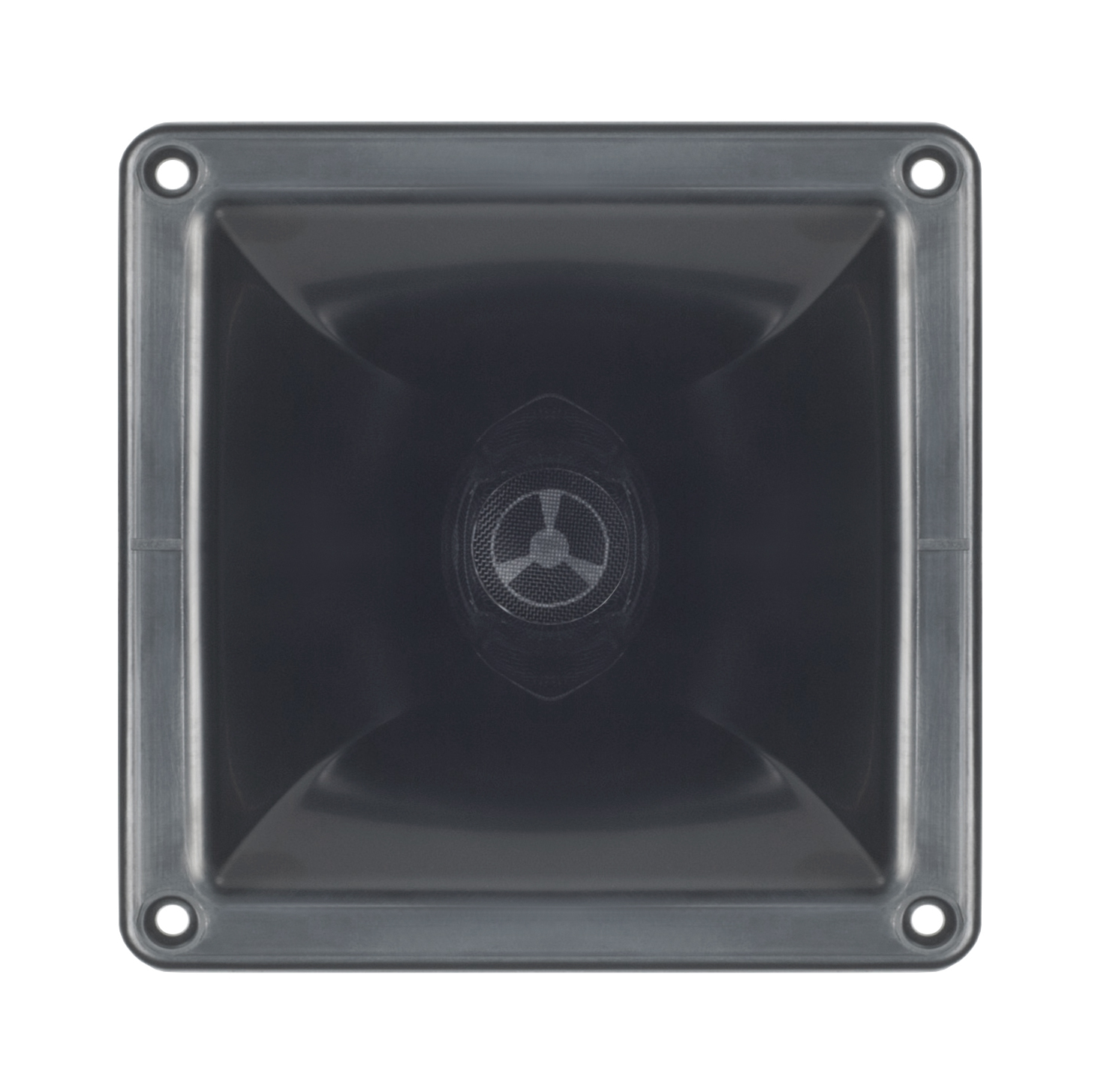

Features
- 90° x 60° angular coverage
- 80 W* continuous program power capacity
- 44 mm (1.7 in) aluminium voice coil
- HT Polymer diaphragm
- 1000 - 18000 Hz response
- 110 dB sensitivity
Specifications Horn unit
Nominal Impedance
8 Ω
Throat Diameter
25 mm (1 in)

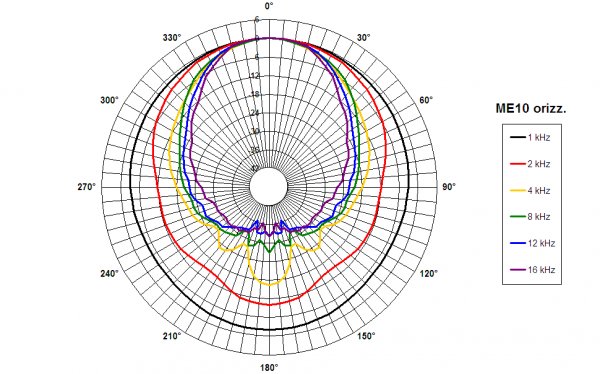

Nominal Coverage Horizontal
90 °

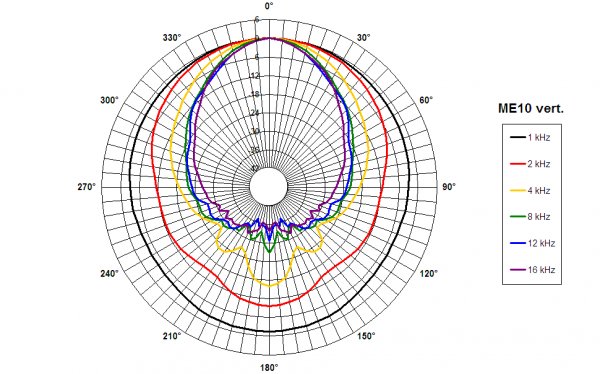

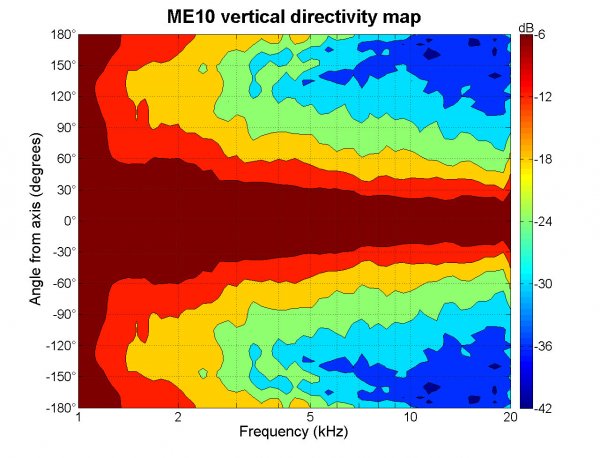

Nominal Coverage Vertical
60 °
Cutoff Frequency
1.5 kHz
Material
ABS
Design
Hyperbolic Cosine Flare
Specifications HF unit
Throat Diameter
25 mm (1 in)

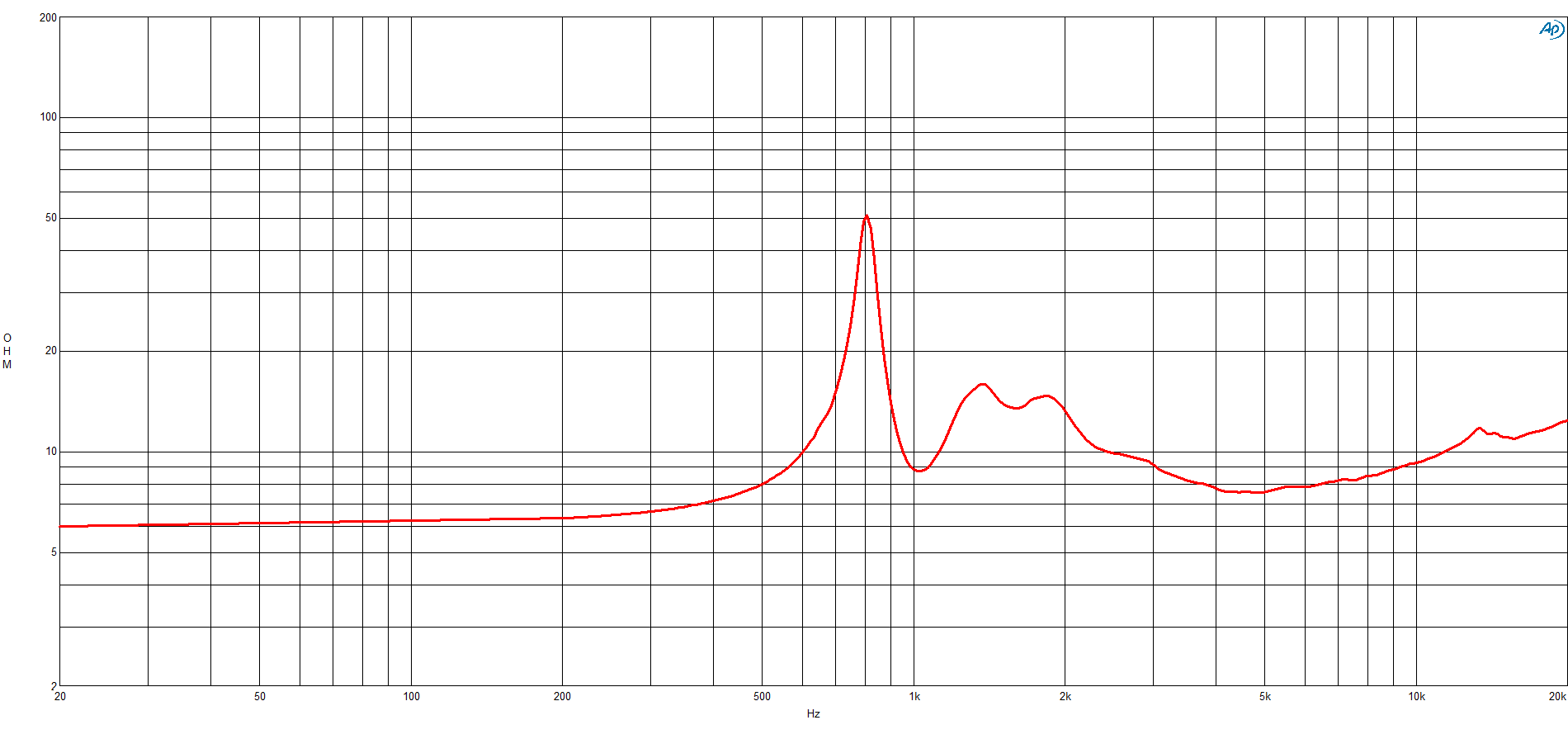

Nominal Impedance
8 Ω
Minimum Impedance
7.6 Ω
Nominal Power Handling
40 W
Continuous Power Handling
80 W

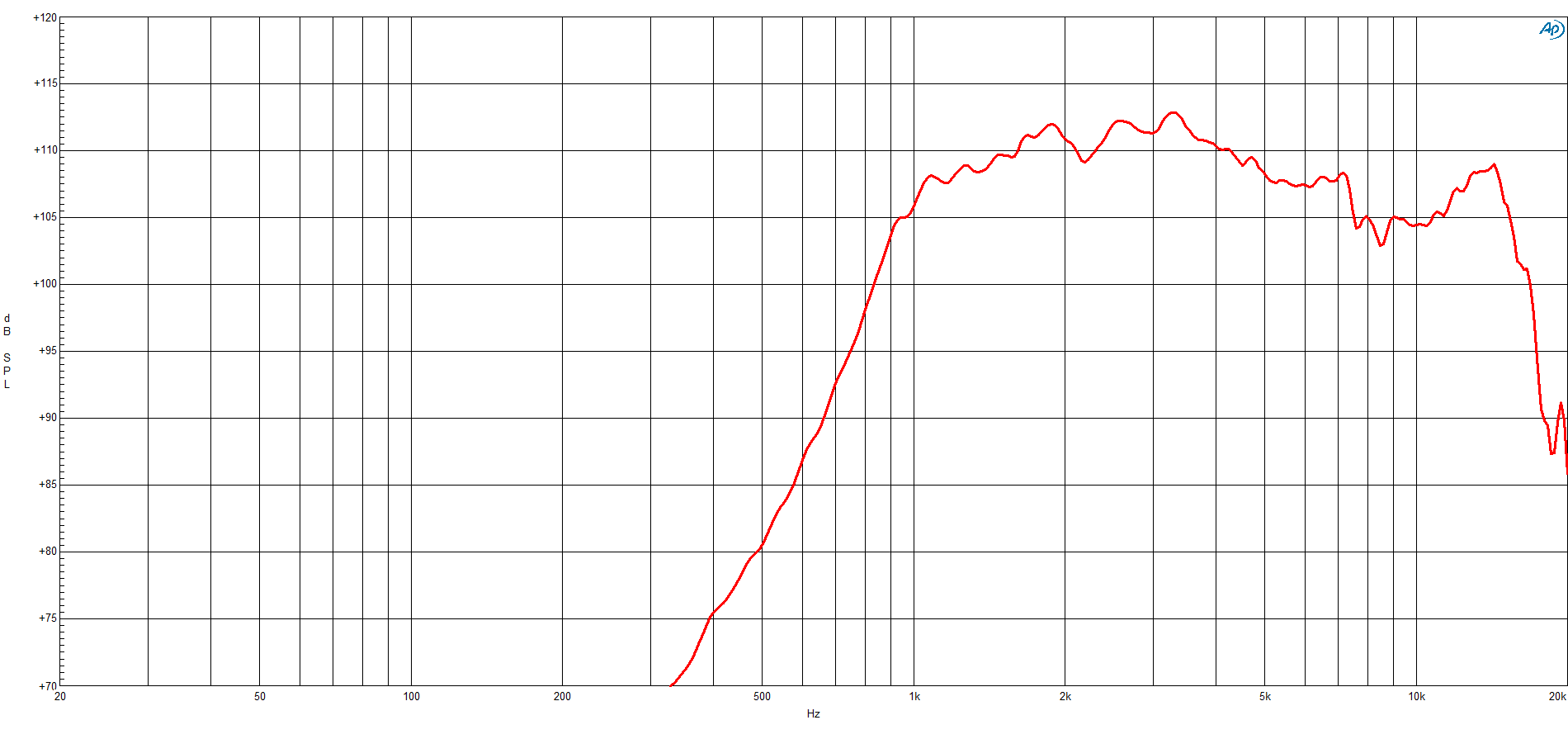

Sensitivity
109 dB
Frequency Range
1 kHz - 18 kHz
Recommended Crossover
1.5 kHz
Voice Coil Diameter
44 mm (1.7 in)
Winding Material
Aluminium
Inductance
0.16 mH
Flux Density
1.9 T
Diaphragm Material
HT Polymer

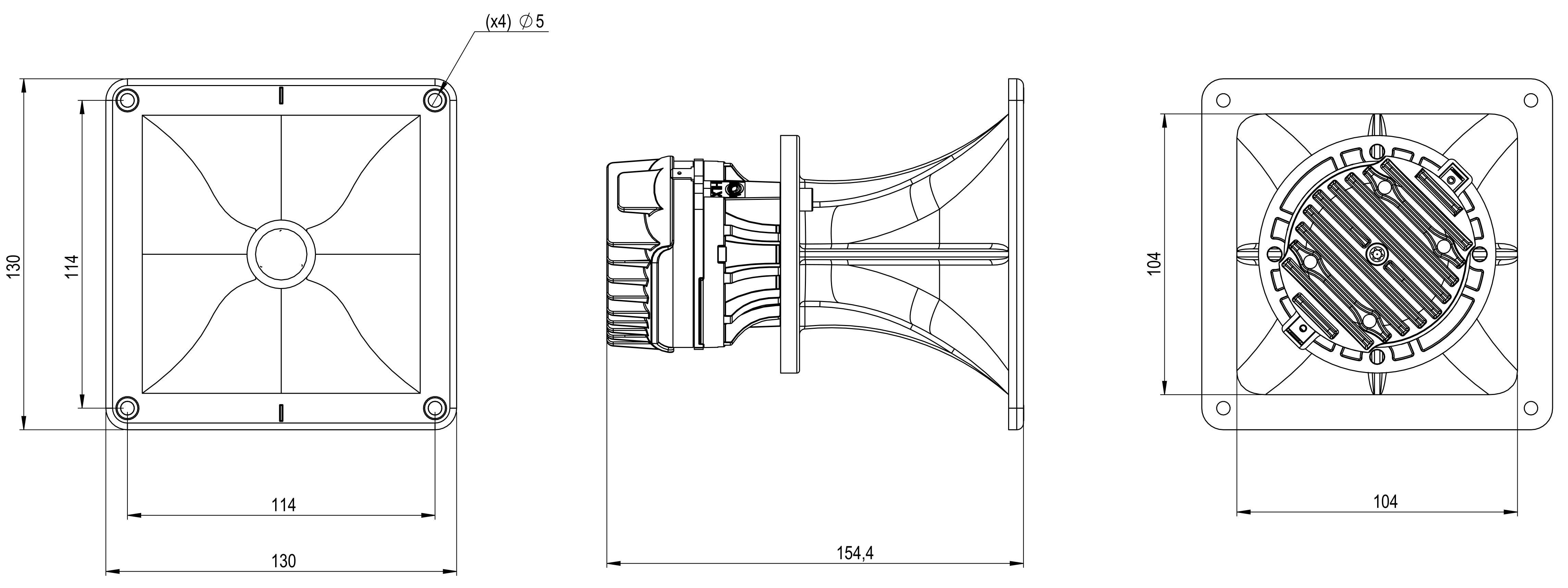

Mounting and Shipping Info
Depth
154.4 mm (6.08 in)
Net Weight
