    12NDL76

    12 inches

    Woofer

    Features


    800 W continuous program power capacity
    76 mm (3 in) aluminium voice coil
    50 - 2000 Hz response
    100 dB sensitivity
    Neodymium magnet allows a very light yet powerful motor assembly
    Ventilated voice coil gap for reduced power compression

    Specifications

    Nominal Diameter

    320 mm (12 in)

    Nominal Impedance

    16 Ω

    Minimum Impedance

    12.5 Ω

    Nominal Power Handling

    400 W

    Continuous Power Handling

    800 W

    Sensitivity

    100 dB

    Frequency Range

    50 Hz - 2000 Hz

    Voice Coil Diameter

    76 mm (3 in)

    Winding Material

    Aluminium

    Former Material

    Glass Fibre

    Winding Depth

    19 mm (0.75 in)

    Magnetic Gap Depth

    10 mm (0.4 in)

    Flux Density

    1.25 T

    Woofer Cone Treatment

    None

    Parameters

    Fs

    50 Hz

    Re

    10.2 Ω

    Qes

    0.3

    Qms

    3.8

    Qts

    0.27

    Vas

    69 dm³ (2.44 ft³)

    Sd

    522 cm² (80.9 sq²)

    η0

    2.8 %

    Xmax

    7 mm

    Xvar

    7 mm

    Mms

    56 g

    Bl

    24.7 Tm

    Le

    1.7 mH

    EBP

    167 Hz

    Design

    Surround Shape

    Double Roll

    Cone Shape

    Exponential

    Magnet Material

    Neodymium Inside Slug

    Spider

    Single

    Pole Design

    Straight Pole

    Woofer Cone Treatment

    None

    Recommended Enclosure

    42 dm³ (1.48 ft³)

    Recommended Tuning

    65 Hz

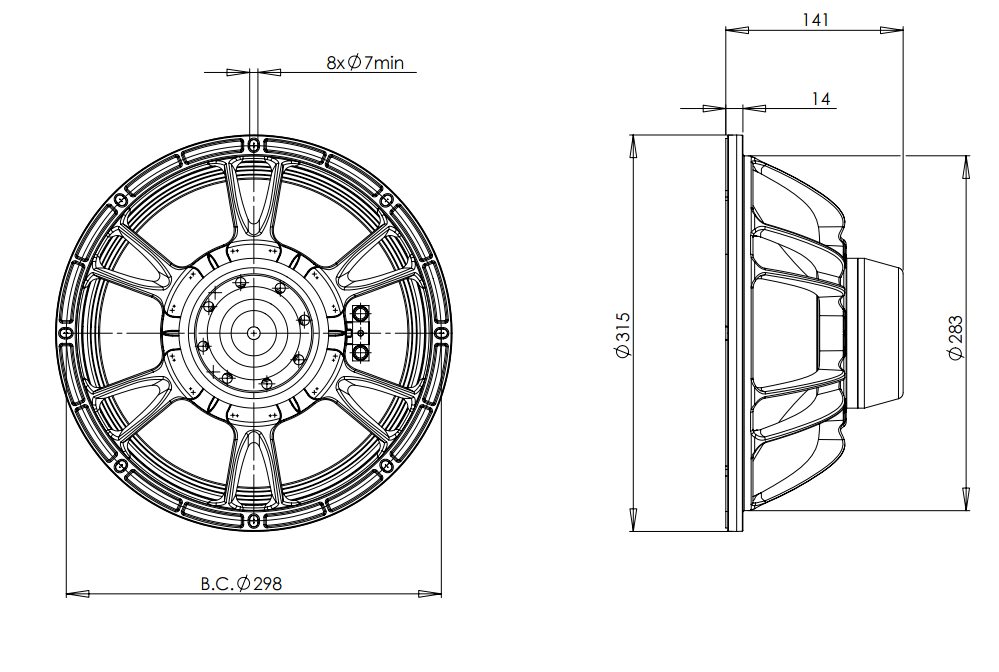

    Mounting and Shipping Info

    Overall Diameter

    315 mm (12.4 in)

    Bolt Circle Diameter

    298 mm (11.7 in)

    Baffle Cutout Diameter

    283 mm (11.1 in)

    Depth

    141 mm (5.5 in)

    Flange and Gasket Thickness

    14 mm (0.55 in)

    Air Volume Occupied by Driver

    2.5 dm³ (0.08 ft³)

    Net Weight

    3.9 kg (8.6 lb)

    Shipping Units

    1 pcs

    Shipping Weight

    4.5 kg (9.9 lb)

    Shipping Box

    360x360x200 mm (14.17x14.17x7.87 in)

    Service Kit

    lf Recone Kit
    RCK12NDL7616
