    6MD38

    6.5 inches

    Midrange

    Features


    240 W continuous program power capacity
    38 mm (1.5 in) aluminium voice coil
    130 - 6000 Hz response
    96 dB sensitivity

    Specifications

    Nominal Diameter

    170 mm (6.5 in)

    Nominal Impedance

    8 Ω

    Minimum Impedance

    6.5 Ω

    Nominal Power Handling

    120 W

    Continuous Power Handling

    240 W

    Sensitivity

    96 dB

    Frequency Range

    130 Hz - 6000 Hz

    Voice Coil Diameter

    38 mm (1.5 in)

    Winding Material

    Aluminium

    Former Material

    Glass Fibre

    Winding Depth

    9 mm (0.35 in)

    Magnetic Gap Depth

    6 mm (0.25 in)

    Flux Density

    1.4 T

    Woofer Cone Treatment

    None

    Parameters

    Fs

    130 Hz

    Re

    5.7 Ω

    Qes

    0.49

    Qms

    3.7

    Qts

    0.44

    Vas

    3 dm³ (0.1 ft³)

    Sd

    132 cm² (20.5 sq²)

    η0

    1.4 %

    Xmax

    2 mm

    Xvar

    4.5 mm

    Mms

    12 g

    Bl

    10.5 Tm

    Le

    0.25 mH

    EBP

    265 Hz

    Design

    Surround Shape

    Triple Roll

    Cone Shape

    Exponential

    Magnet Material

    Ferrite

    Spider

    Single

    Pole Design

    T-Pole

    Woofer Cone Treatment

    None

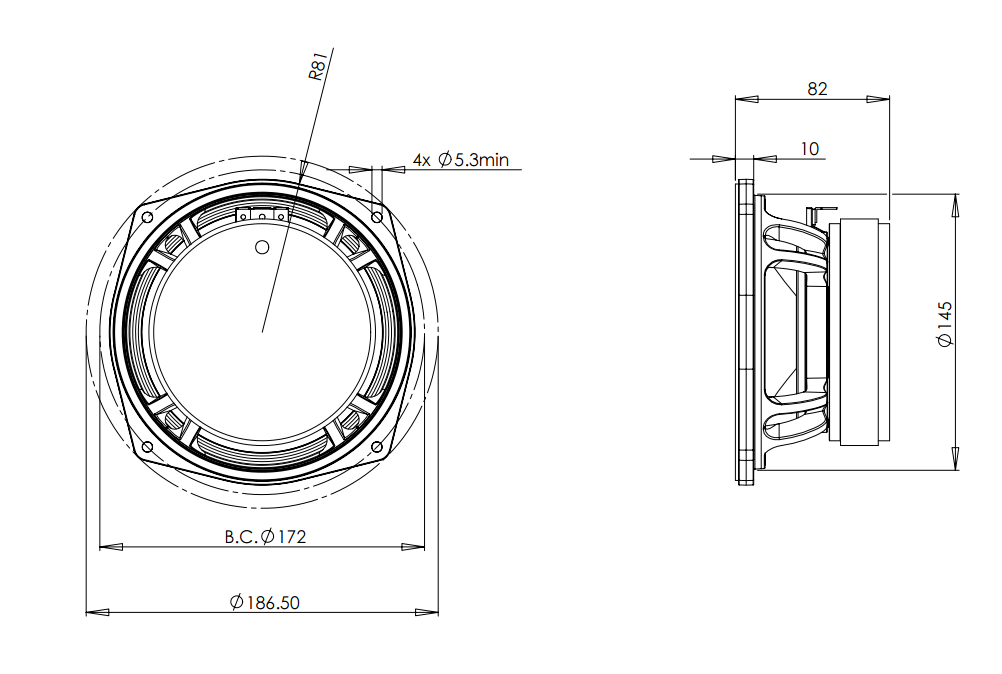

    Mounting and Shipping Info

    Overall Diameter

    187 mm (7.4 in)

    Bolt Circle Diameter

    172 mm (6.7 in)

    Baffle Cutout Diameter

    145 mm (5.7 in)

    Depth

    82 mm (3.2 in)

    Flange and Gasket Thickness

    9 mm (0.35 in)

    Air Volume Occupied by Driver

    0.8 dm³ (0.03 ft³)

    Net Weight

    2.3 kg (5.07 lb)

    Shipping Units

    1 pcs

    Shipping Weight

    2.5 kg (5.51 lb)

    Shipping Box

    210x210x125 mm (8.27x8.27x4.92 in)

    Service Kit

    lf Recone Kit
    RCK06MD388
    • Cone

    • Gasket

    • Centering Shims
