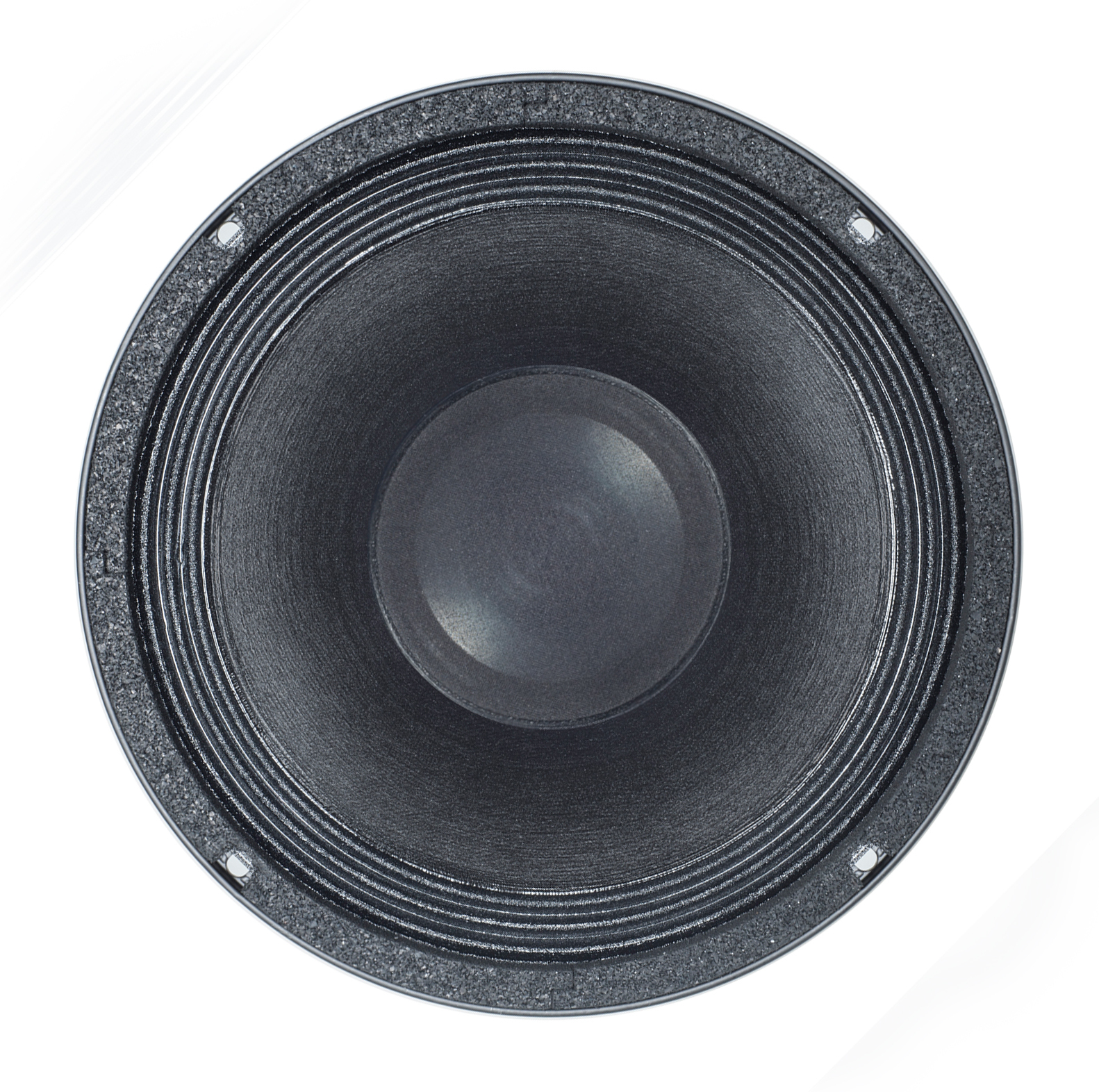

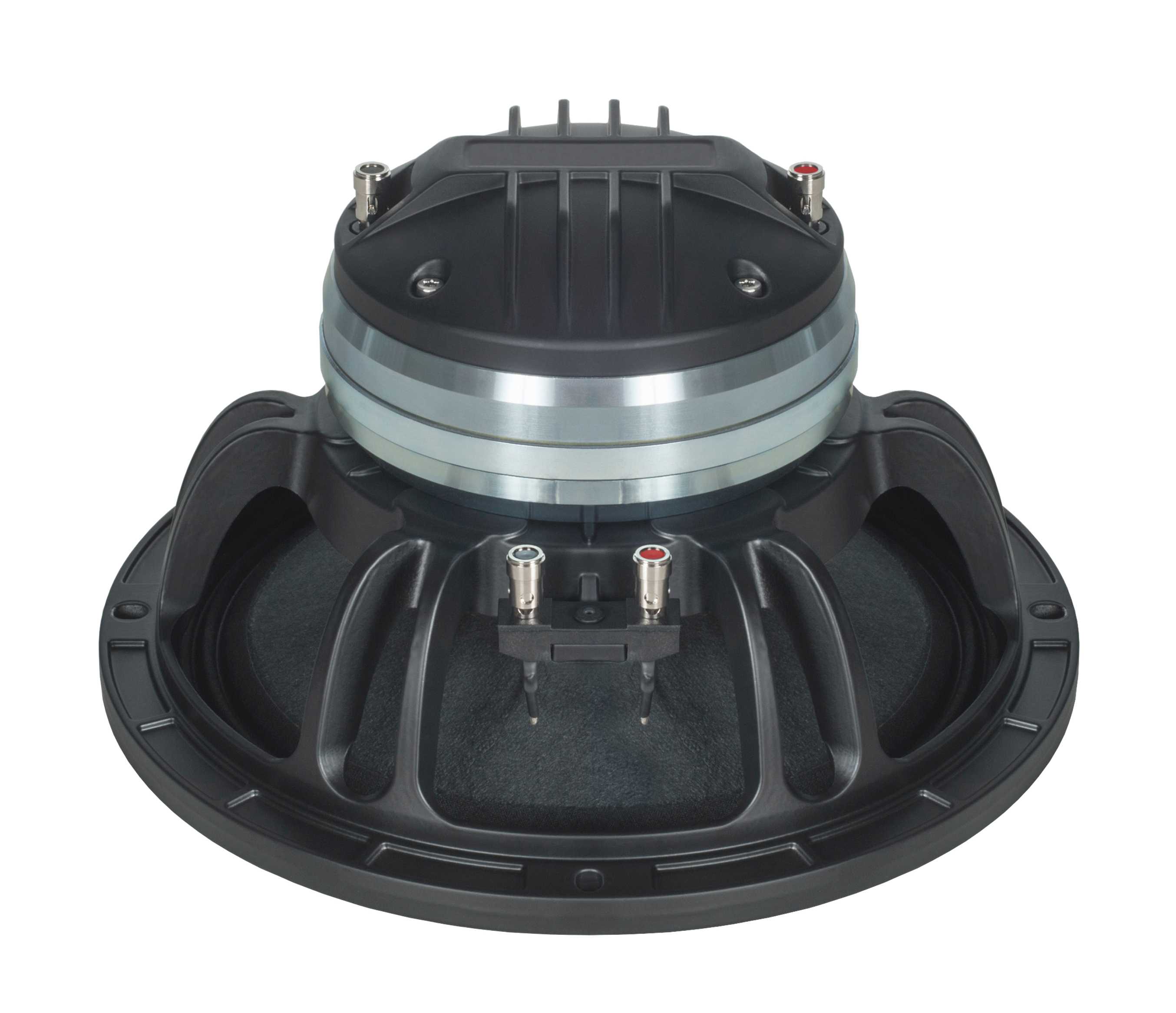

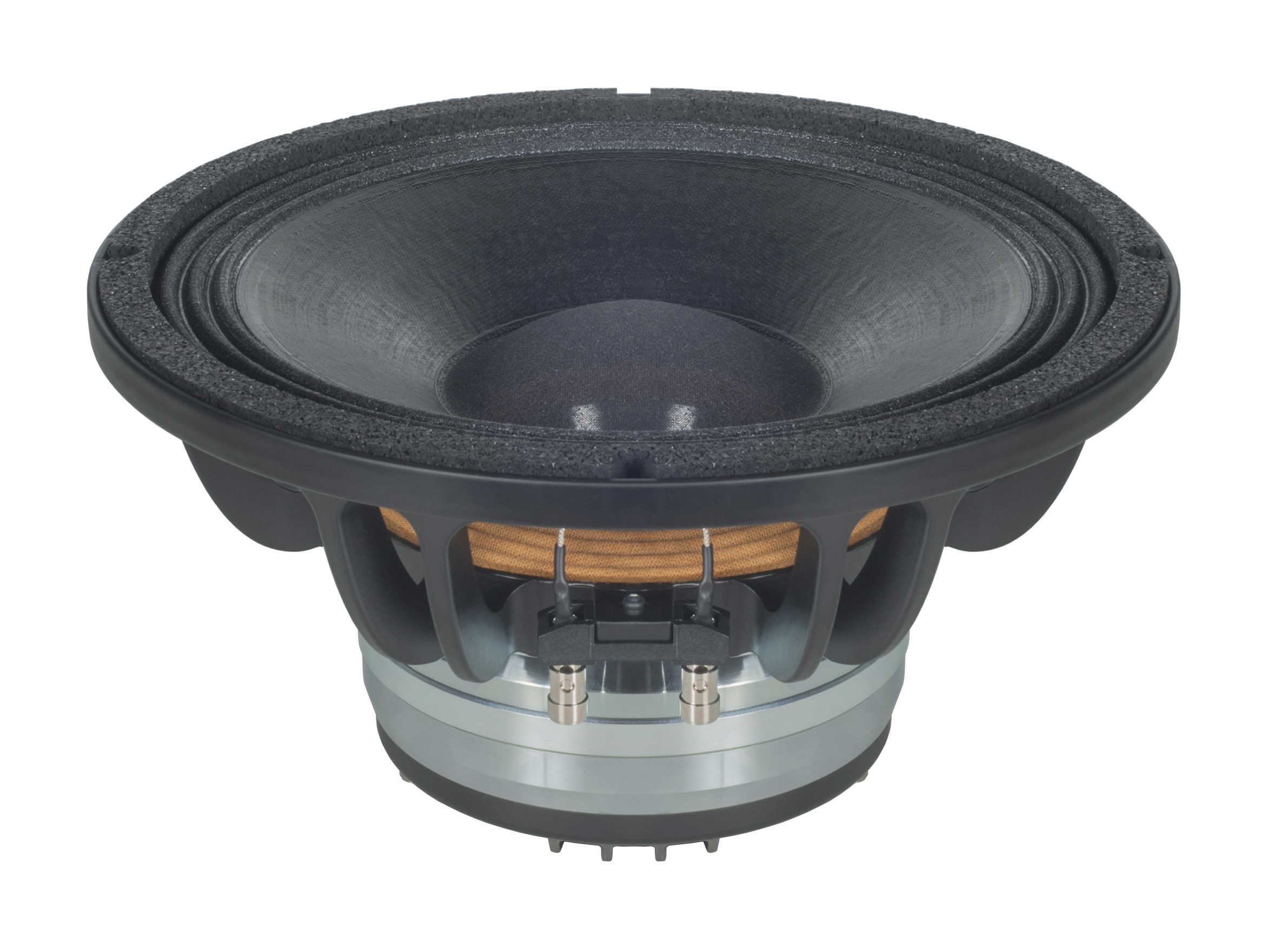

10CXN76
10 inch
NEW
Continuing our never-ending quest for higher output, we now offer our popular single neodymium magnet coaxials with larger voice coils for increased power handling. A significant increase in magnet mass also improves sensitivity and cone control, while integrating our latest compression driver technologies improves sound quality and durability in the HF as well. For high output applications where fidelity at maximum SPL is the primary concern, consider the 10CXN76, with 3” LF and HF voice coils. Power handling has increased to 600W, while also improving nearly every other parameter (including Xvar) relative to our established 2.5” coil 10CXN64.
Features
- 600 W continuous program power capacity
- 90° nominal coverage
- 60 - 18000 Hz response
- 96 dB sensitivity
- Single Neodymium magnet assembly
- Aluminium demodulating ring allows a very low distortion figure
General
Nominal Diameter
250 mm (10 in)
Nominal Impedance
8 Ω
Frequency Range
60 Hz - 18000 Hz

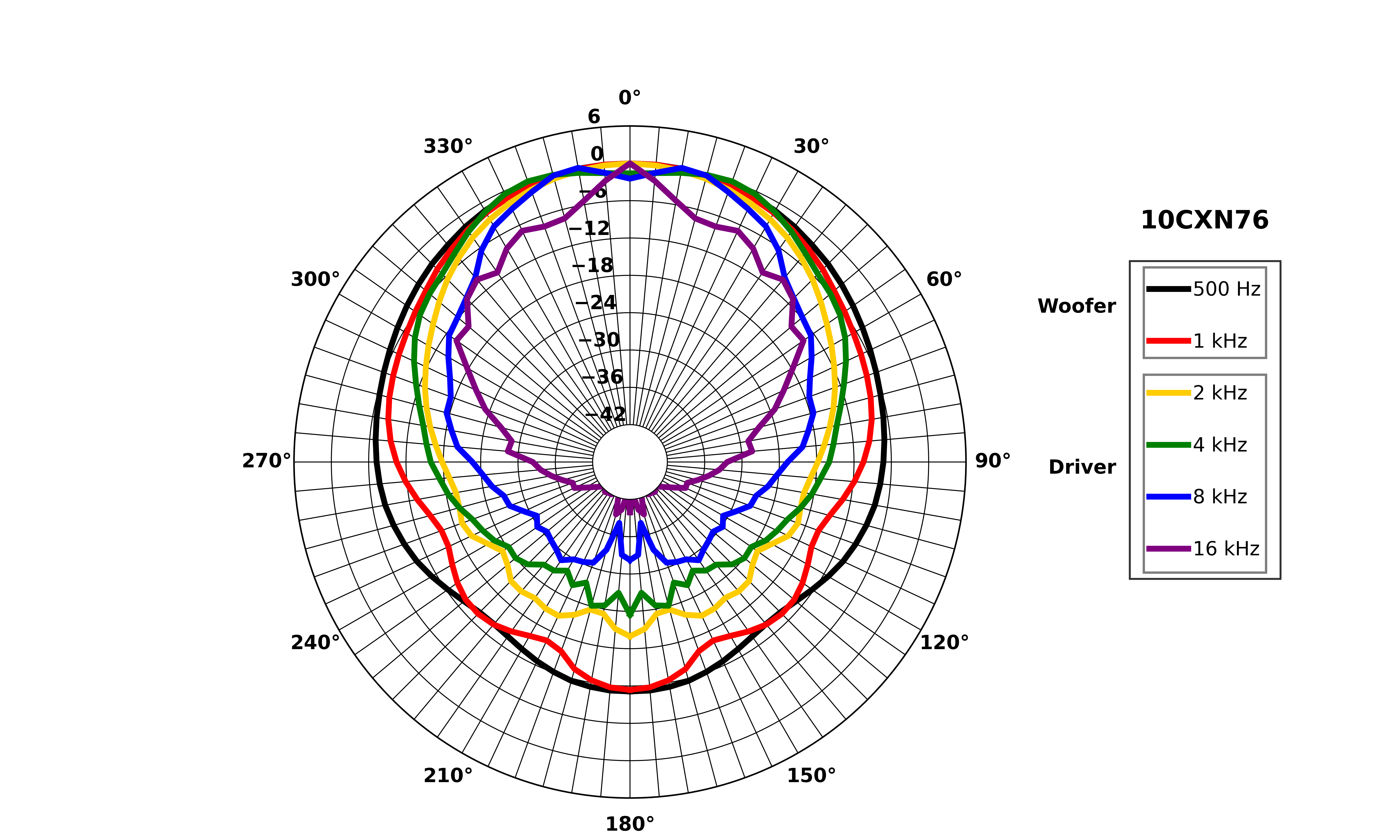

Dispersion Angle
90 °
Specifications LF unit
Nominal Diameter
250 mm (10 in)
Nominal Impedance
8 Ω
Minimum Impedance
6.3 Ω
Nominal Power Handling
300 W
Continuous Power Handling
600 W
Sensitivity
96 dB
Voice Coil Diameter
76 mm (3 in)
Winding Material
Copper
Former Material
Kraft Paper
Winding Depth
16 mm (0.63 in)
Magnetic Gap Depth
8 mm (0.31 in)
Flux Density
1.15 T
Specifications HF unit
Nominal Impedance
8 Ω
Minimum Impedance
8 Ω
Nominal Power Handling
80 W
Continuous Power Handling
160 W
Sensitivity
106 dB
Frequency Range
1 kHz - 18 kHz
Recommended Crossover
1.2 kHz
Voice Coil Diameter
75 mm (3 in)
Winding Material
Aluminium
Inductance
0.14 mH
Flux Density
1.85 T
Diaphragm Material
Titanium
Design
Surround Shape
Triple Roll
Magnet Material
Neodymium Ring
Spider
Single
Woofer Cone Treatment
WP Waterproof Front Side
Parameters
Fs
58 Hz
Re
5.2 Ω
Qes
0.31
Qms
8.2
Qts
0.3
Vas
19 dm³ (0.67 ft³)
Sd
320 cm² (49.6 in²)
η0
1.2 %
Xmax
6 mm
Xvar
5.4 mm
Mms
58 g
Bl
18.9 Tm
Le
0.7 mH
EBP
187 Hz

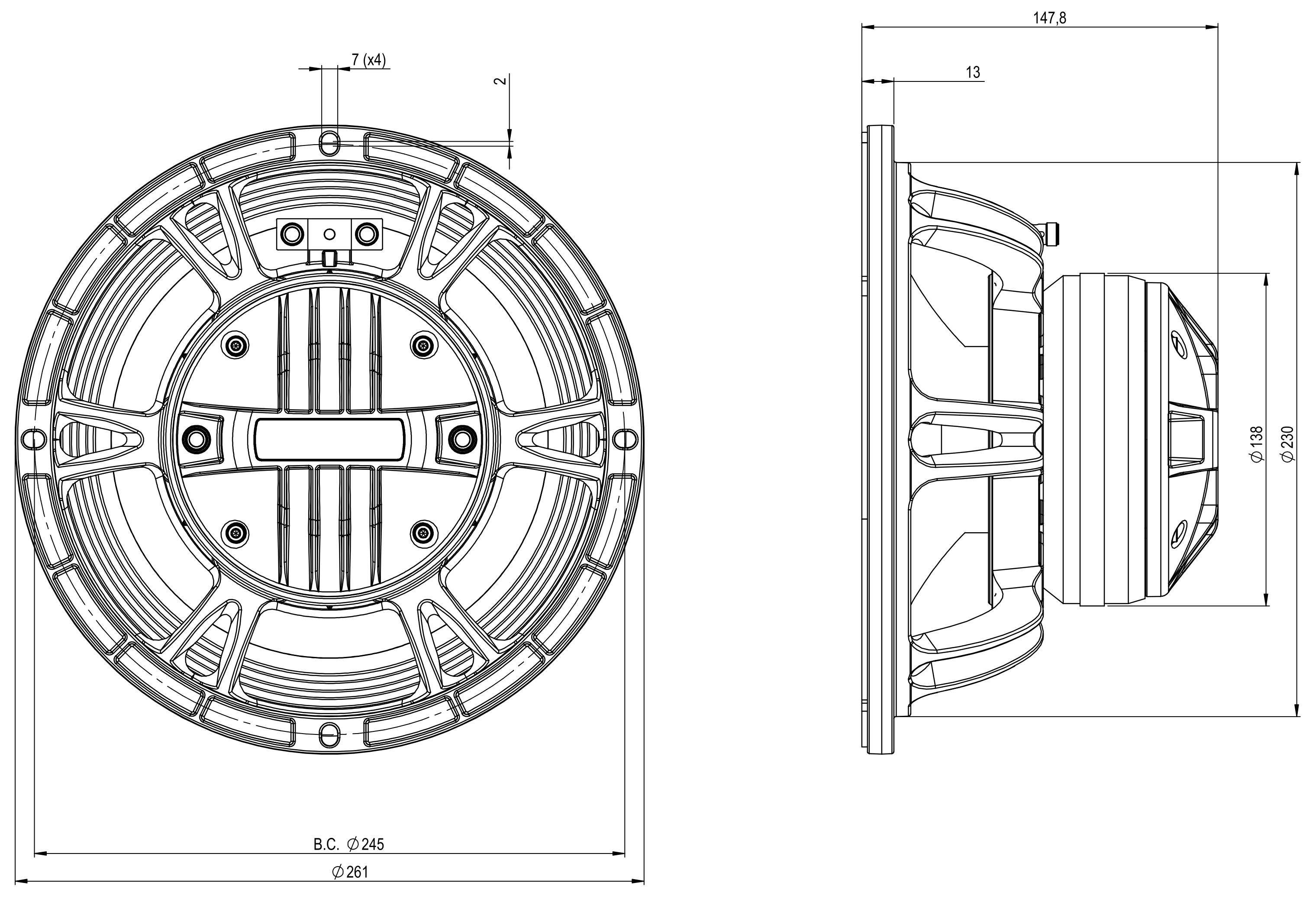

Mounting and Shipping Info
Overall Diameter
261 mm (10.28 in)
Bolt Circle Diameter
245 mm (9.65 in)
Baffle Cutout Diameter
230 mm (9.06 in)
Depth
148 mm (5.83 in)
Flange and Gasket Thickness
13 mm (0.51 in)
Net Weight
4.8 kg (10.58 lb)
Service Kit
hf Replacement Diaphragm
MMD3BTN8M
