Features

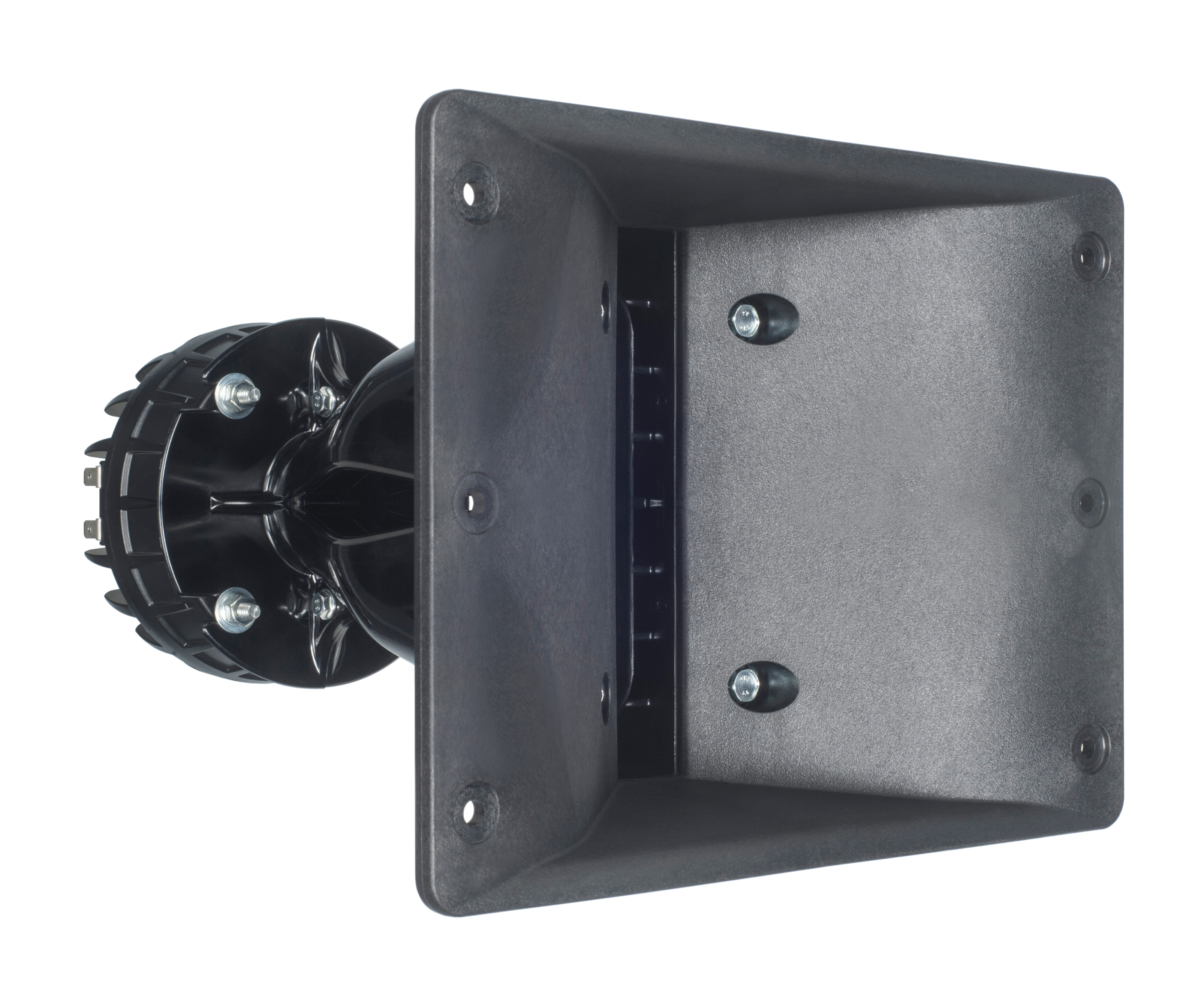

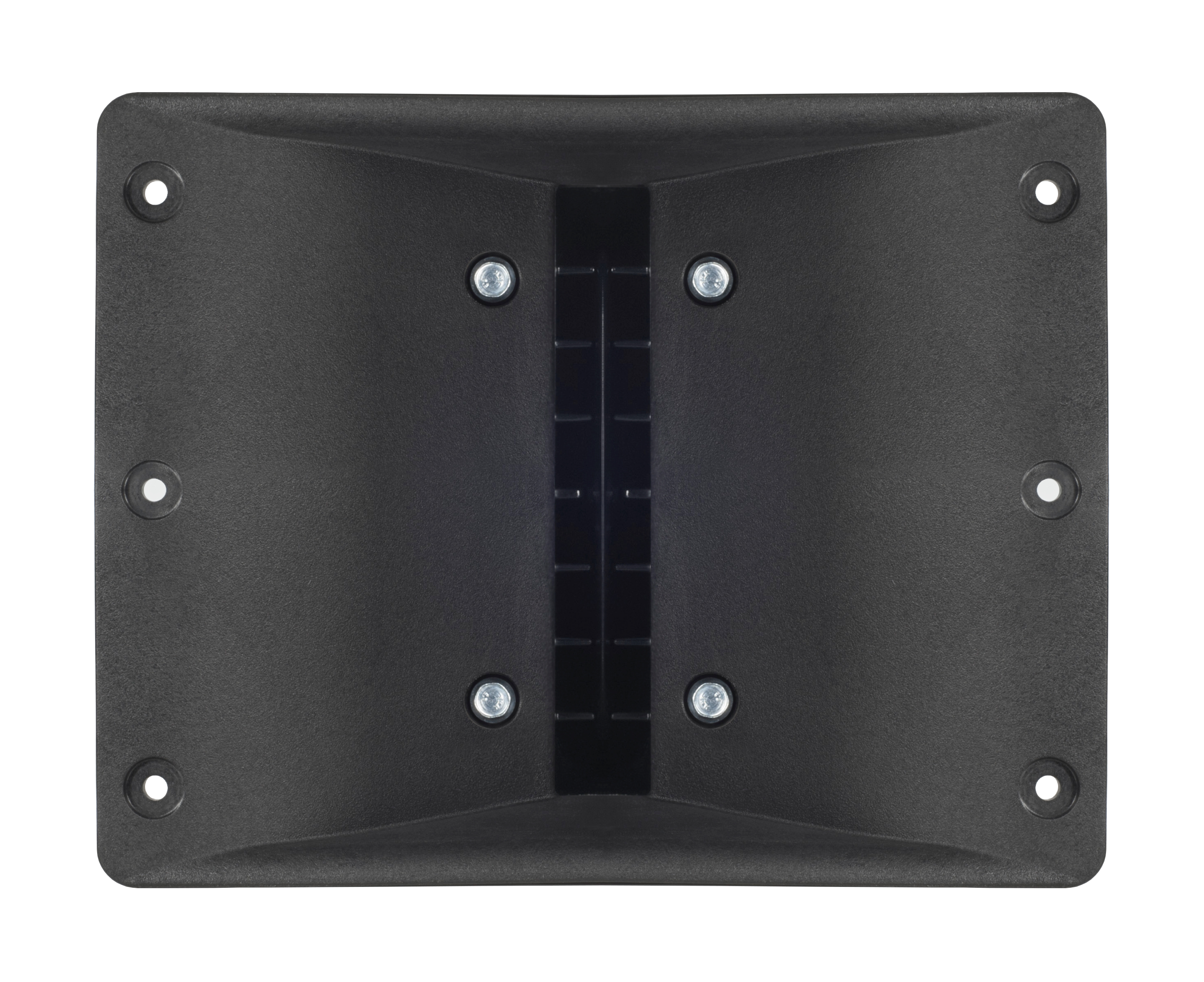

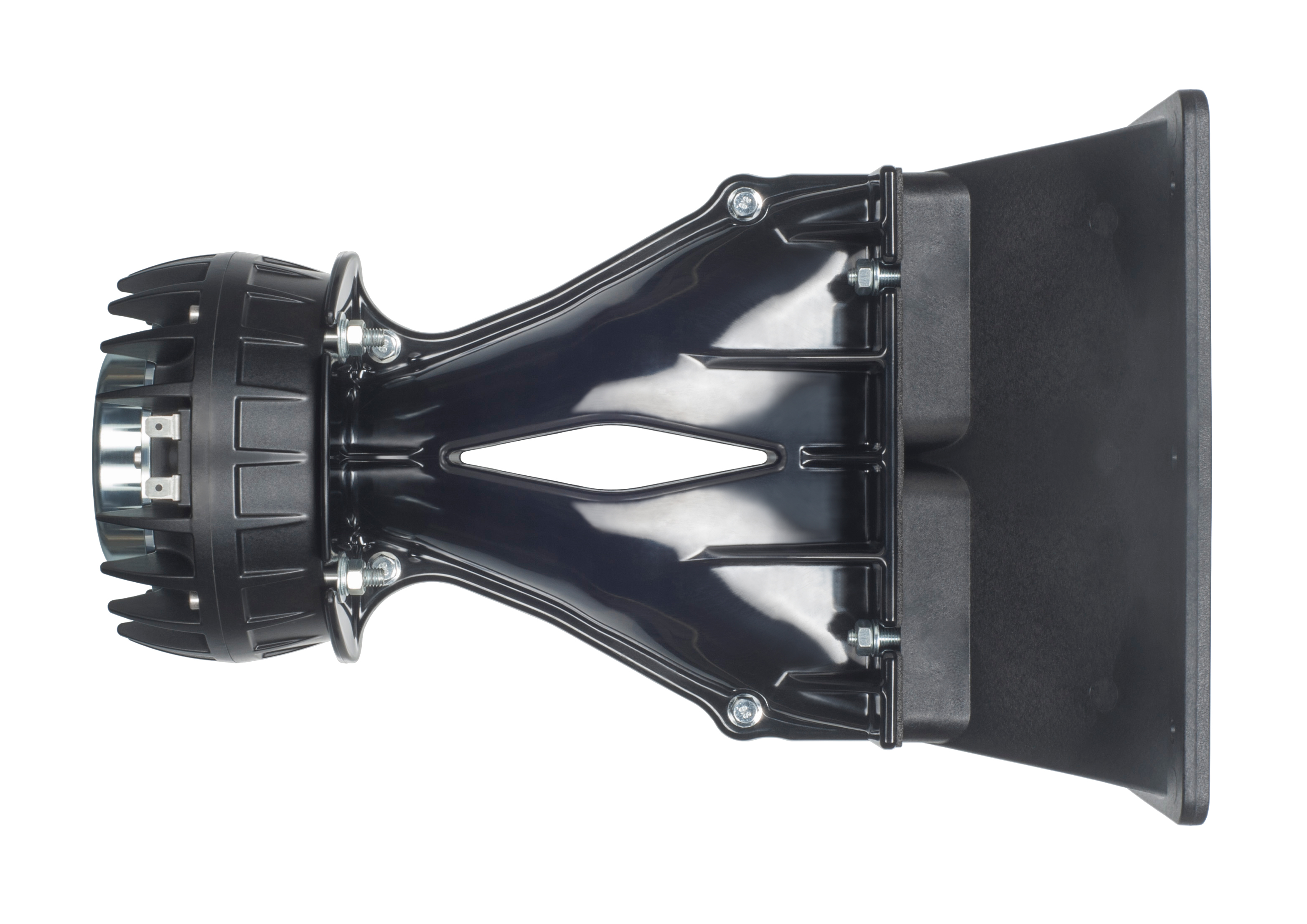

- Line Array optimized Waveguide + Flare with DCX354 driver, ME146 horn and HF146 flare
- 110.3 dB sensitivity
- 180 W continuous program power capacity

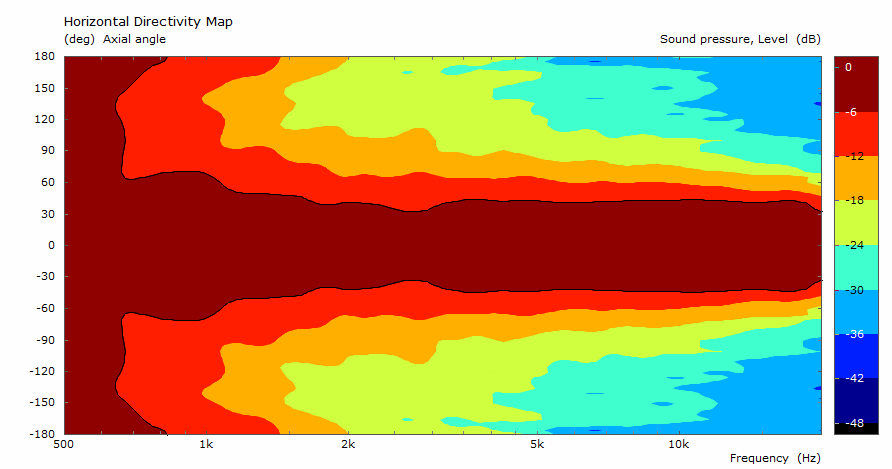

- 100° max horizontal coverage

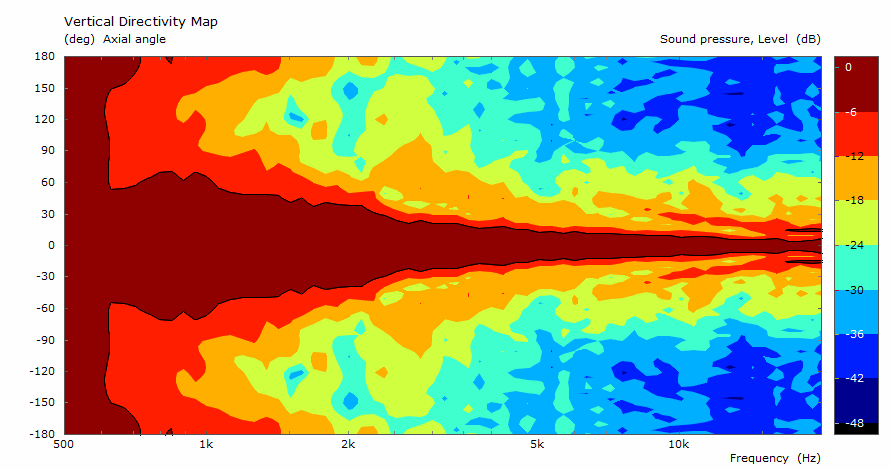

- Vertical coverage depends on configuration
- Very good loading and directivity control down to 700 Hz
- Neodymium magnet assembly
- Recommended hardware for horn mounting: four M6x12 screws
Specifications Horn unit
Nominal Impedance
8 Ω
Active Radiating Factor
92 %
Horizontal Coverage
100 ° Max
Specifications MF unit
Minimum Impedance
8.2 Ω
Nominal Power Handling
90 W
Continuous Power Handling
180 W
Sensitivity
109.2 dB
Frequency Range
0.4 kHz - 6 kHz
Recommended Crossover
0.7 kHz
Voice Coil Diameter
76 mm (3 in)
Winding Material
Aluminium
Inductance
0.26 mH
Flux Density
1.93 T
Diaphragm Material
HT Polymer Ring
Specifications HF unit
Minimum Impedance
6.8 Ω
Nominal Power Handling
50 W
Continuous Power Handling
100 W
Sensitivity
110.3 dB
Frequency Range
4 kHz - 20 kHz
Recommended Crossover
4.5 kHz
Voice Coil Diameter
51 mm (2 in)
Winding Material
Aluminium
Inductance
0.1 mH
Flux Density
1.96 T
Diaphragm Material
HT Polymer Ring
Mounting and Shipping Info
Recommended hardware for horn mounting: four M6x12 screws
Net Weight
3.52 kg (7.76 lb)
Driver Diameter
