    DCM414

    1.4 inches

    B&C engineers have been working for the last five years on a family of next generation high frequency devices. Compression drivers are the linchpin of a PA system: operating at wavelengths too small to readily couple with other drivers, they alone have to fight distance and atmospheric losses to deliver concert sound pressure levels to ever larger audiences.

    Enter the DCM414 ring radiator midrange driver, designed from scratch to advance the state of the art. The DCM414’s midrange diaphragm covers 300Hz – 6.0kHz with 113.7 dB sensitivity (16 Ohm version), and its 100mm voice coil handles 220 watts. All this energy arrives at a 1.4” throat, from the most compact package that can be designed today.

    Brand new materials and thousands of hours of modelling and testing result in lower distortion at higher SPL than has ever been possible before. Consider the new DCM414 for your next design, and enjoy a new standard in fidelity, with the reliability and consistency you expect from B&C.

    Features


    Especificación

    Diámetro de la garganta

    36 mm (1.4 in)

    Impedancia nominal

    16 Ω

    Impedancia minima

    9 Ω

    Manejo de potencia nominal

    110 W

    Manejo de potencia continua

    220 W

    Sensibilidad

    113.7 dB

    Rango de frecuencia

    0.3 kHz - 6 kHz

    Cruce recomendado

    0.3 kHz

    Diámetro de la bobina

    100 mm (4 in)

    Material de la bobina

    Aluminio

    Inductancia

    0.28 mH

    Material del diafragma

    Polímero HT

    Densidad de flujo

    1.9 T

    Max Frequency Range

    6 kHz

    Min Frequency Range

    0.3 kHz

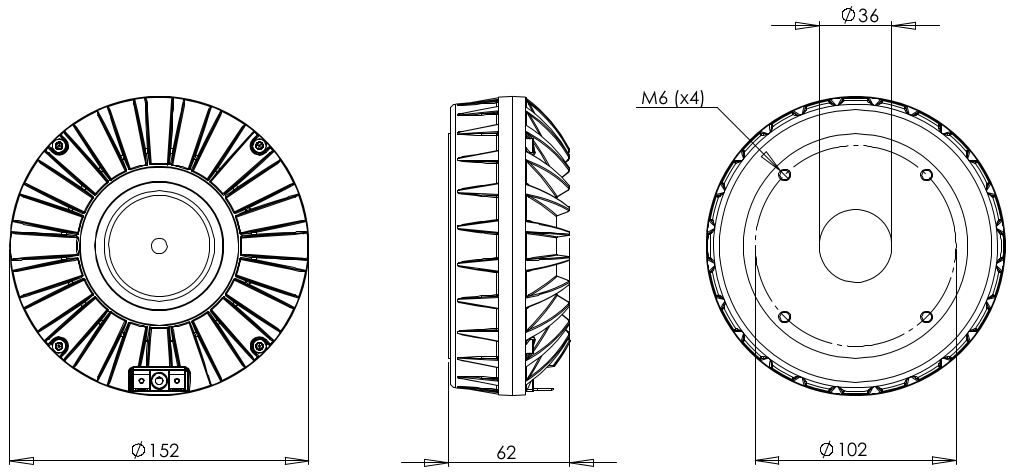

    Información de montaje y envío

    Other details

    4x M6 Mounting Studs with bolts and washers included

    Diámetro total

    152 mm (6 in)

    Profundidad

    62 mm (2.44 in)

    Peso neto

    2.3 kg (5.07 lb)

    Unidades del envío

    1 pcs

    Peso del envío

    2.5 kg (5.51 lb)

    Caja de envío

    170x170x140 mm (6.69x6.69x5.51 in)

    Service Kit

    hf Replacement Diaphragm
    MMDDCX464MF16
